SensoControl Serviceman Plus | Analog or CAN Versions Available

Serviceman Plus Digital Diagnostic Meters | SCM-155-2-05 & SCM-155-0-02


The Parker SensoControl Serviceman Plus is an extremely robust, portable, and easy to use measuring device. It replaces its predecessor, the SensoControl Serviceman.

The Serviceman Plus measures pressure, flow, temperature, and RPM with 1 ms scan rate. The measurements can be stored on a nano USB drive, or transfered to a PC for analysis (using the included SensoWin software).

Two versions of the Serviceman Plus are available: an analog version with two analog inputs, and a CAN version which supports up to three CAN sensors at a time.
The Serviceman Plus meters can be purchased individually or in kits. For a Serviceman Plus kit, please see the bottom of this page. Other SensoControl meters and gauges are available, please go to SensoControl Meter Selection to compare different SensoControl meters.

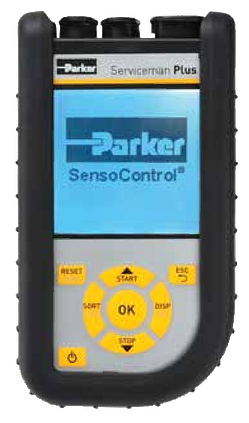

  SensoControl Serviceman Plus

Measure and Display:

  • Pressure

  • Flow

  • RPM (rotations per minute)

  • Temperature

Features:

  • Intuitive operation

  • “Plug and play” automatic sensor recognition

  • Large back-lit display

  • MIN/MAX memory and differential measurements

  • Increased memory capacity with nano USB drive

  • USB interface to PC for convenient analysis and documentation via SensoWin software

  • IP67 rated protection for extreme conditions

  • Rear panel integrated support for free-standing operation

  • Scan Rate: 1 ms

Connection Diagram | Serviceman Plus

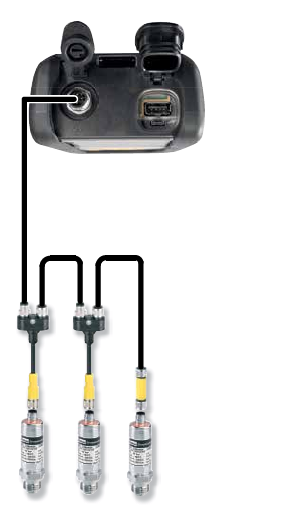

SCM-155-2-05 (CAN Version)

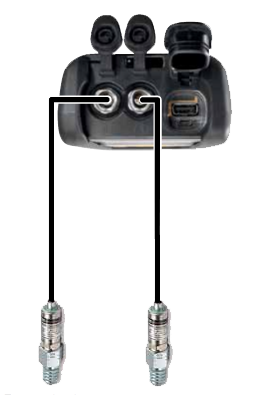

Parker SCM-155-2-05 CAN		 SCM-155-0-02 (Analog Version)
Parker SCM-155-0-02 Analog







SensoControl Serviceman Plus Kits

 SensoControl Serviceman Plus Kit

Code for Ordering Serviceman Plus Kits

PDS4-C-TT-TT-XXX

  • C - Coupling style:
    • 2 = PD style
    • 4 = PDP style
    • 6 = EMA 3 style (female)
    • 0 = No transducer
  • TT - Transducer pressure range (psi)
    (Order either one or two)
    • 01 = -14.5 - +235 (Blue)
    • 06 = 0 - 870 (Green)
    • 15 = 0 - 2175 (Yellow)
    • 40 = 0 - 5800 (Orange)
    • 60 = 0 - 8700 (Red)
    • 00 - No transducers
  • XXX - CAN for CAN version; blank for analog version



Serviceman Plus CAN Kit Contents

  • Case (SCC-200)
  • Serviceman Plus meter (SCM-155-2-05)
  • Transducers (one or two, different options available)
  • Transducer Cable - one or two
  • Power Supply (SCSN-440)
  • CAN Y cable (included with 2-transducer kit)
  • Terminator Resistor
  • CD with SensoWin software and instructions
  • Nano USB Memory Stick - 1 GB
  • USB Connection Cable

Serviceman Plus Analog Kit Contents

  • Case (SCC-200)
  • Serviceman meter (SCM-155-0-02)
  • Transducers (one or two, different options available)
  • Transducer Cable - one or two
  • Power Supply (SCSN-440)
  • CD with SensoWin software and instructions
  • Nano USB Memory Stick - 1 GB
  • USB Connection Cable

SensoControl Meters Support



Hose & Fittings, Etc. supports its customers during and after the purchase of SensoControl meters. Our in-house expert is available to train your mechanics at your location (anywhere in Northern California and North-Western Nevada). If you prefer, training can also be arranged in Hose & Fitting, Etc.’s West Sacramento headquarters.



TECHNICAL DATA
Serviceman SCM-155-2-05
CAN Version

METER

  • Large 130x130 px graphical display with LED background lighting
  • Measures: pressure, temperature, flow and rotational speed
  • Functions: difference, addition, output, ACT, Min, Max, FS, Temperature display, battery charge, start-stop measurement.
  • Internal Memory: 15,000 data records, 270,000 measure values
  • External Memory: USB memory stick - 4 GB Max (1 GB supplied)

INPUTS

  • One CAN port accepts input from uup to three CAN sensors in a BUS line.
  • Sensor auto recognition
  • Compatible with all SensoControl CAN sensors and accessories
  • 2 ms scanning rate
  • High resistance to interference
POWER REQUIREMENTS
  • 3.5V DC Lithium-Ion Pack
  • 4550 mAh
  • 7-hour battery life

AMBIENT CONDITIONS

  • Operating Temperature 32°F - 122°F
  • Storing Temperature -4°F - 140°F

HOUSING

  • PC/ABS case
  • DIN EN 60068-2-32 (1 m free fall)
  • Carrying strap
  • Integral stand

TECHNICAL DATA
Serviceman SCM-155-0-02
Analog Version

METER

  • Large 130x130 px graphical display with LED background lighting
  • Measures: pressure, temperature, flow and rotational speed
  • Functions: difference, addition, output, ACT, Min, Max, FS, Temperature display, battery charge, start-stop measurement.
  • Internal Memory: 15,000 data records, 270,000 measure values
  • External Memory: USB memory stick - 4 GB Max (1 GB supplied)

INPUTS

  • Two analog ports
  • Sensor auto recognition
  • Compatible with all SensoControl analog sensors and accessories
  • 1 ms scanning rate
POWER REQUIREMENTS
  • 3.7V DC Lithium-Ion pack
  • 2250 mAh
  • 3.5-hour battery life

AMBIENT CONDITIONS

  • Operating Temperature 32°F - 122°F
  • Storing Temperature -4°F - 140°F

HOUSING

  • PC/ABS case
  • DIN EN 60068-2-32 (1 m free fall)
  • Carrying strap
  • Integral stand
