SensoControl Industrial Controller | SCLSD Series
 |
Parker’s SCLSD Level Controller is an accurate tool for tank level media measurement. With a resolution of 0.3 inches (7.5mm), this controller provides accurate level readings for fluid system monitoring and regulation. |
Parker SCLSD Level Controller Applications & Features
|
Applications Include:
|
Features:
|
Parker SCLSD Series Level Controllers
| Part Number | Probe Length | Electrical Output | Port Connection | Electrical Connection | Sensing Element |
| SCLSD-14.6-17-07 | 14.6 inch | 1 sw / 1 analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 4 pin | Resistance reed with float |
| SCLSD-14.6-17-05 | 14.6 inch | 2 sw / 1 analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 5 pin | Resistance reed with float |
| SCLSD-14.6-07-07 | 14.6 inch | 2 sw / no analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 4 pin | Resistance reed with float |
| SCLSD-20.5-17-07 | 20.5 inch | 1 sw / 1 analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 4 pin | Resistance reed with float |
| SCLSD-20.5-17-05 | 20.5 inch | 2 sw / 1 analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 5 pin | Resistance reed with float |
| SCLSD-20.5-07-07 | 20.5 inch | 2 sw / no analog | 1-1/16 - 12 UNF male SAE-12 with O-ring | M12 X 1, 4 pin | Resistance reed with float |

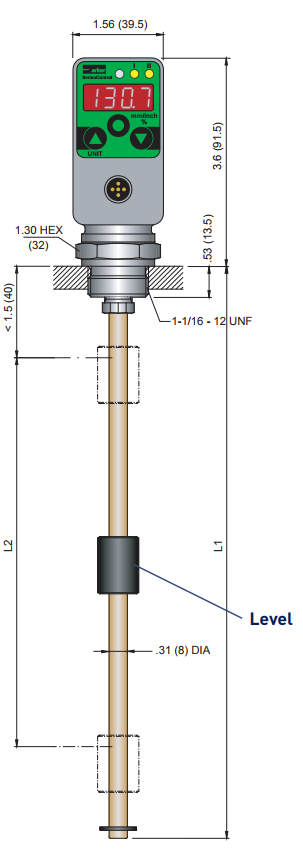

Parker SCLSD Level Controller Dimensions & Specifications
 |
 |

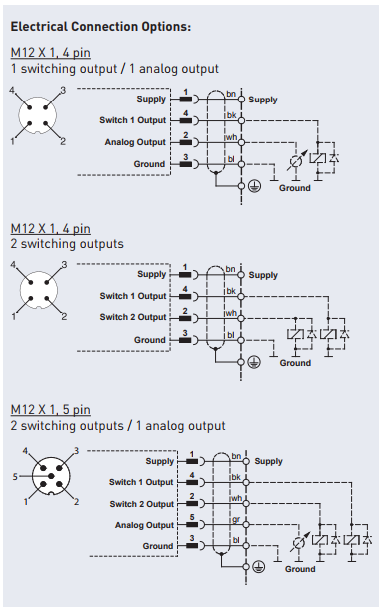

Parker SCLSD Level Controller Electrical Connection Options
 |
| Technical Specifications | |
| Outputs | 2 PNP MOSFET switches, optional analog (4-20 mA) |
| Contact Functions | Normally open / closed, window / hysteresis, freely settable |
| Switching Point & Display Accuracy | +/- 1% FS |
| Protection Class | IP67 |
| Response Speed | < 700ms |
| Long Term Stability | < 0.1% FS/a |
| Load Reversals | > 20 M |
| Resolution | 0.2 inches (5mm) |
| Physical Properties | |
| Material Housing | Zinc diecast Z 410; painted |
| Material Fitting | Nickel plated brass |
| Material Seal | Nitrile |
| Material Float | Nitrile |
| Material Level Rod | Brass |
| Sensing Element | Resistance reed with float |
| Display | 4 figure, 7 segment red LED; digit height 0.35 inches (9mm) |
| General Data | |
| Electrical Protection | Short circuit, reverse polarity, overload production |
| Power Supply | 15…30 VDC nominal 24 VDC; protection class 3 |
| Switching Voltage | Power supply 1.5 VDC |
| Temperature Range - Enviromental | -4° to 185° F |
| Temperature Range - Media, Storage | -40° to 212° F |
| Temperature Range - Compensated | -4° to 185° F |
| Vibration Resistance | Meets IEC 60068-2-29 |
| Shock Resistance | Meets IEC 60068 2-32 |
| EMI Compatibility | DIN EN 61000-6-3 |
| DIN EN 61000-6-2 | |
| Working Pressure | 14.5 psi |

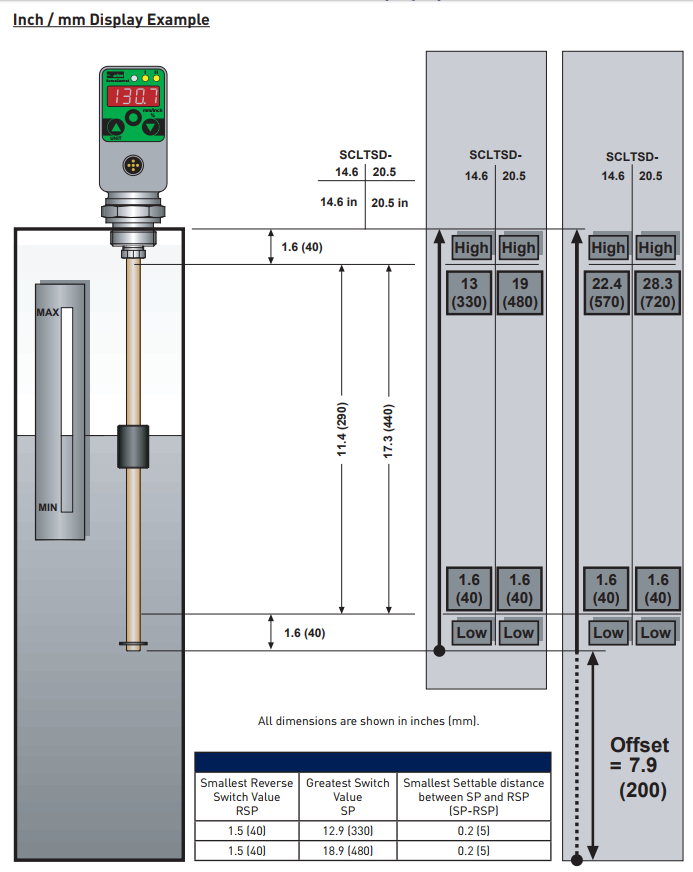

Parker SCLSD Level Controller Display Options
 |
