SCTSD Temperature Controller The SCTSD Temperature Controller combines the functions of a temperature switch, temperature sensor, and display in a single instrument.

 Parker SCTSD Temperature Controll Applications & Features

 Applications Include:

  • Inspection Station
  • Process Technology
  • General Machine Construction
  • Pneumatic & Hydraulic Plant Construction

 Features:

  • Temperature Display
  • Switching Outputs for Control
  • Analog Output Signals
  • Password Protection
  • Solid Mechanical construction

 Parker SCTSD Temperature Controllers

Part Number Temperature Range Electrical Output *Adapter Port Connection Electrical Connection
SCTSD-250F-10-07 -40°F to +250°F 1 sw / 1 analog 3/4-16UNF-2A male SAE-8 using adapter M12 X 1, 4 pin
SCTSD-250F-10-05 -40°F to +250°F 2 sw / 1 analog 3/4-16UNF-2A male SAE-8 using adapter M12 X 1, 5 pin
SCTSD-250F-00-07 -40°F to +250°F 2 sw / 0 analog 3/4-16UNF-2A male SAE-8 using adapter M12 X 1, 4 pin
* Connection Adapter is required for direct port mounting.

 Parker SCTSD Temperature Controller Dimensions

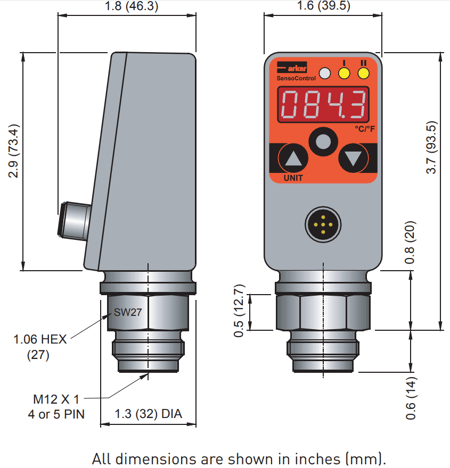

SCTSD Temperature Controller Dimensions

Parker SCTSD Temperature Controller Electrical Connection Options

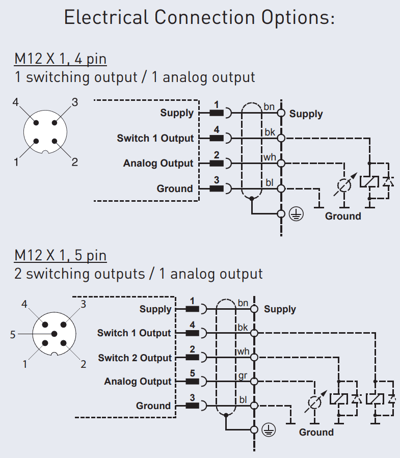

SCTSD Temperature Controller Electrical Connections



Technical Specifications
Outputs 2 PNP MOSFET switches, optional analog (4-20 mA)
Contact Functions Normally open / closed, window / hysteresis, freely settable
Temperature Switching Point & Display Accuracy (± 0.35% FS, ± 1 digit at 75F)
Protection Class IP67
Response Speed 300 ms
Long Term Stability < 0.1% FS/a
Resolution 1° F



Physical Properties
Material Housing Zinc diecast Z 410; painted
Material Foil Polyester
Display 4 figure, 7 segment red LED; digit height 0.35 inches (9mm)



General Data
Measuring Element PT 1000 RTD
Electrical Protection Short circuit, reverse polarity, overload production
Power Supply 15…30 VDC nominal 24 VDC; protection class 3
Current Consumption <100mA
Switching Current Max. 0.7 A/switch
Temperarture Range - Media -40° to 257° F
Temperature Range - Enviromental -13° to 176° F
Temperature Range - Storage -40° to 185° F
Temp Error Coefficient < +/- 0.3% FS/10K
Vibration Resistance Meets IEC 60068-2-6
Shock Resistance Meets IEC 60068 2-29
EMI Compatibility DIN EN 61000-6-3
DIN EN 61000-6-2
Working Pressure 145 PSI
Media Compatibility Non-aggressive fluid media

 Parker SCTSD Temperature Controller Mounting Options

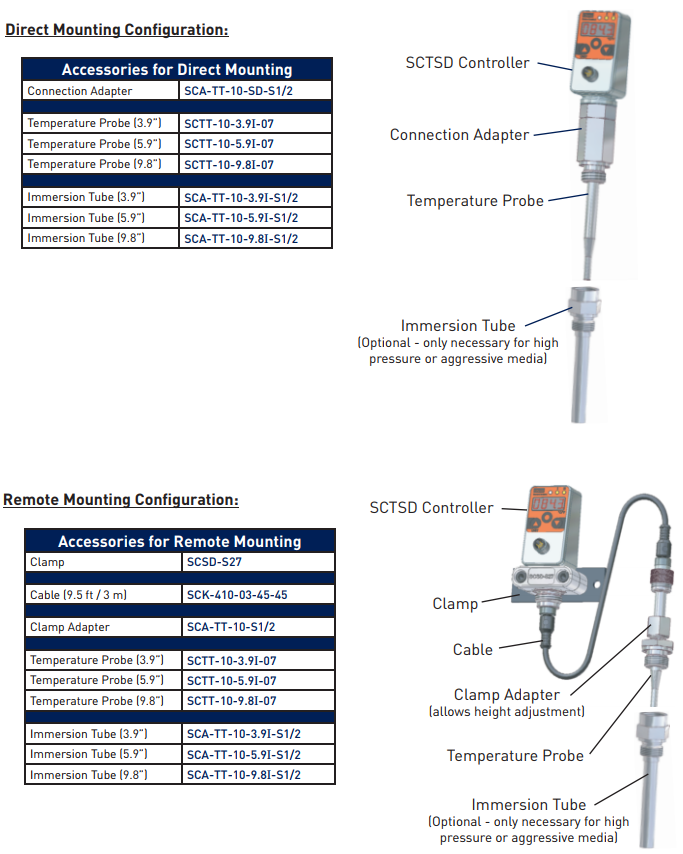

SCTSD Temperature Controller Mounting
