Industrial Sensor Accessories| SCE-020

Parker SCE-020 Digital Display The SCE-020 converts standard analog signals into clearly understandable measurement values/units and displays them to be easily read

 Parker SCE-020 Compatibilities & Features

Compatible with: Parker SensoControl & Other Sensors

  • Pressure
  • Temperature
  • Load/Torque
  • Length
  • Flow


  • Easy to read digital display
  • Programmable
  • Selectable untis
  • Display ranges can be set
  • Accepts common current & voltage signals
  • Terminal block connection
  • Loop through function: analog output or serial
  • Interface

 Parker SCE-020 Digital Display Includes:

Display SCE-020-02
Power Supply SCSN-410
Data Cable SCK-300-02-31


Measurement Error +/- 0.2% of the Display +/- 1 Digit
Measuring Rate 5ms (Limited value scanning every 5ms)
Measuring Range Freely selectable (programming)


Display 4-figure 7-segment LED
Display Range -999 to 9999
Digit Height 13mm
Decimal Point Freely programmable


Enviromental Conditions
Working Temperature Range 32° -140° F
Storage Temperature Range 13° - 176° F
Relative Humidity <80%
Protection Class IP44 (<1mm solids, splashing H20)


Material PC ABS black
Self-extinguishing to UL94V0
For panel and console mounting
Frontal Dimensions 96 x 48mm
Mouting Depth 131mm
Connector 12-Pole terminal strip with wire protection
Weight Approximately 0.45 lbs

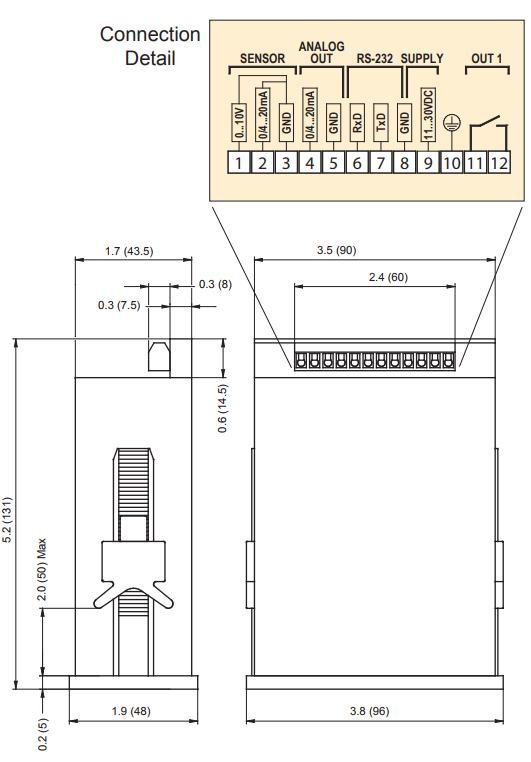

 Parker SCE-020 Digital Display Connection Details

Parker SCE-020 Digital Display Connection Detail


 Parker SCE-020 Digital Display Specs

Parker SCE-020 Digital Display Specs

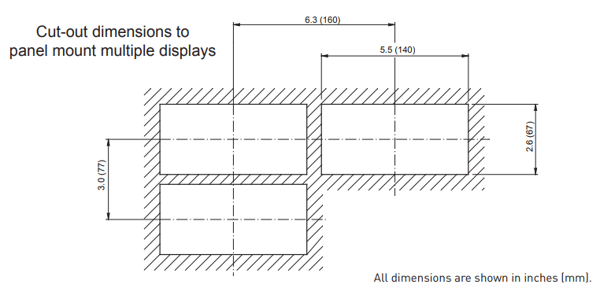

 Parker SCE-020 Digital Display Cut-out Dimensions

Parker SCE-020 Digital Display Cut Out Dimensions


 Parker SCE-020 Digital Display Examples

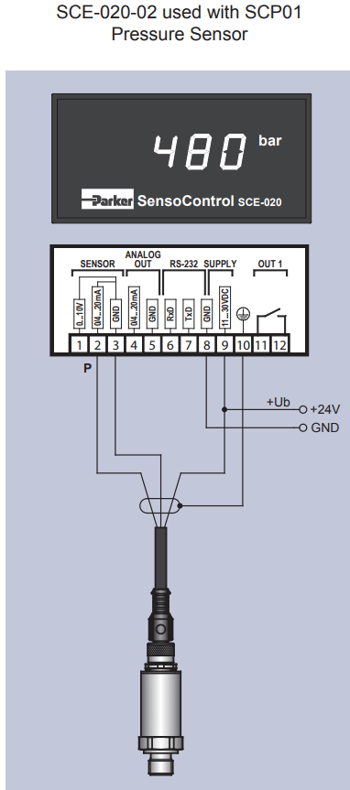

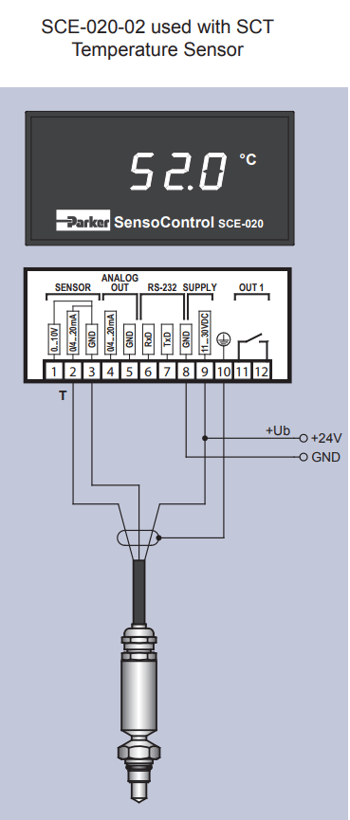

Parker SCE-020 Digital Display Pressure Parker SCE-020 Digital Display Temperature
