SensoControl Industrial Sensor | SCP-EX Series
 |
SCP-EX Pressure Sensors are industrial pressure sensors designed for explosion risk applications. Providing long-term stability and resistance to electrical interference in a compact design, they are available in a wide range of standard and configured to order versions. These sensors are manufactured to the highest quality standards for reliable and repeatable measurements as well as the safety of being used in high risk areas. |
Parker SCP-EX Applications & Features
|
Applications Include:
|
Features:
|

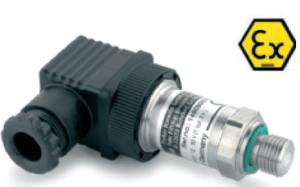

Parker SCP-EX Series Explosion Resistant Pressure Sensors
| Part Number | Pressure Range (PSI) | Electrical Output | Port Connection | Electrical Connection |
| SCP-1000P-35-06-EX | 0 to 1000 | 4 - 20 mA, 2 wire | 1/4 NPT male | DIN 34650 EX |
| SCP-1000P-37-06-EX | 0 to 1000 | 4 - 20 mA, 2 wire | 7/16-20UNF-2A male SAE-4 with O-ring | DIN 34650 EX |
| SCP-3000P-35-06-EX | 0 to 3000 | 4 - 20 mA, 2 wire | 1/4 NPT male | DIN 34650 EX |
| SCP-3000P-37-06-EX | 0 to 3000 | 4 - 20 mA, 2 wire | 7/16-20UNF-2A male SAE-4 with O-ring | DIN 34650 EX |
| SCP-5000P-35-06-EX | 0 to 5000 | 4 - 20 mA, 2 wire | 1/4 NPT male | DIN 34650 EX |
| SCP-5000P-37-06-EX | 0 to 5000 | 4 - 20 mA, 2 wire | 7/16-20UNF-2A male SAE-4 with O-ring | DIN 34650 EX |
| SCP-9000P-35-06-EX | 0 to 9000 | 4 - 20 mA, 2 wire | 1/4 NPT male | DIN 34650 EX |

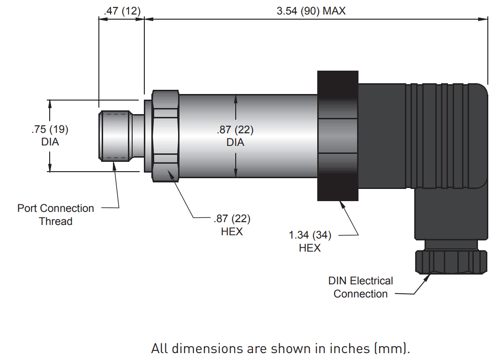

SCP-EX Pressure Sensor Dimensions & Electrical
 |
 |
| Technical Specifications | |
| Overload Pressure | 200% FS |
| Burst Pressure | 250% FS |
| Accuracy | +/- 0.5% FS |
| Protection Class | IP65 |
| EX Approval | ll 2G Eex ia llC T4 (IBExU06ATEX 1045) |
| Response Time | < 1ms |
| Long Term Stability | < 0.1% FS/a |
| Load Reversals | > 20 M |
| Physical Properties | |
| Material Housing | 304 SS |
| Material Fitting | 630 SS |
| Material Seal | Fluorocarbon |
| Sensing Element | Thin Film, Poly Si on Si O2 |
| Pressure Bore | 0.024 in. |
| General Data | |
| Electrical Protection | Short circuit, reverse polarity, overload protection |
| Supply Voltage | 12-30VDC – 4-20mA, 2-wire |
| Temperature Range: | |
| Enviromental | -40° to 185° F |
| Media, Storage | -40° to 257° F |
| Compensated | -4° to 185° F |
| Temperature Coefficient | < +/- 0.3% FS/10° K |
| Vibration Resistance | Meets IEC 60068-2-29 |
| Shock Resistance | Meets IEC 60068 2-32 |
| EMI Compatibility |
DIN EN 61000-6-3 DIN EN 61000-6-2 |
| Additional Data | |
| Ignition Class | ll 2G Eex ia llC T4 (IBExU06ATEX 1045) |
| Basic Standard | EN 50014; EN 50020 |
| Maximum Supply | 30 V; 50 mA; 1 W |
| Temperature Class | T4 (environmental, -40° to 185° F) |
| Power Supply w/ EX Approval | |
| Output Voltage | Max 24 VDC |
| Ouput Current | Max 50 mA |
| Ri (at 24 V) | 510 |
| Output Signal | 4-20 mA, 2-wire |
