SensoControl Industrial Sensor | SCT Series

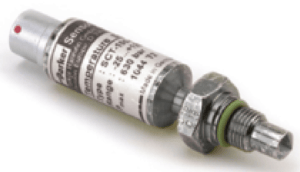

Parker SCT Temperature Sensor SCT Series Temperature Sensors measure system media temperature quickly and precisely.

 Parker SCT Temperature Sensor Applications & Features

Applications Include:

  • Test & Measurement
  • Hydraulic Power Units
  • Power Generation
  • Mobile Hydraulics

Features:

  • Compact
  • Rapid Reaction Time
  • Rugged Steel Housing
  • Simple Installation
  • Applications up to 6000 PSI (415 bar) working pressure
  • -13F to 257F (-25C to 125C)
  • Standard Output Signal
  • Accuracy +/-2% FS

 Parker SCT Series Temperature Sensors

Part Number Temperature Range Port Connection Electrical Ouput
SCT-250F-15-07 -13° F to 257° F (-25° C to 125° C) 1/4 NPT male 0 - 20 mA, 3 wire
SCT-250F-17-07 -13° F to 257° F (-25° C to 125° C) 7/16-20UNF-2A male SAE-4 with O-ring 0 - 20 mA, 3 wire



Technical Specifications
Sensing Element Silicon Chip
Material Steel C15K Galvanized
Protection Class IP 65
Seal O-ring: 7,65 x 1,78 FKM
Measurement Range -13° F to 257° F (-25° C to 125° C)
Working Pressure 6000 psi (414 bar)
Electrical Connection M12 X 1, 4 pin
Voltage Supply 11-30 VDC
Electrical Ouput 0-20mA = -58° F to 257° F
Accuracy +/- 2% FS
Rise Time 13.9 s
Working Resistance 250 Ω
Load Reversals > 20 M
Measurement Media Fluid Media (Oil), No Aggressive Media
Vibration Resistance Meets IEC 60068-2-29
Shock Resistance Meets IEC 60068 2-32
EMI Compatibility DIN EN 61000-6-3
 DIN EN 61000-6-2
Enviromental Temperature Range -4° F to 158° F (-20° C to 70° C)
Fluid Temperature Range -13° F to 257° F (-25° C to 125° C)
Storage Temperature Range -13° F to 176° F (-25° C to 80° C)

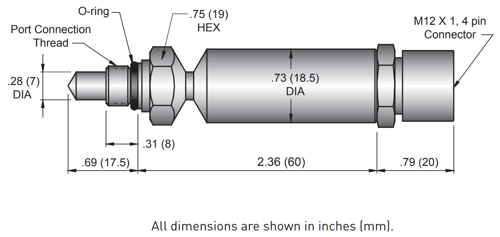

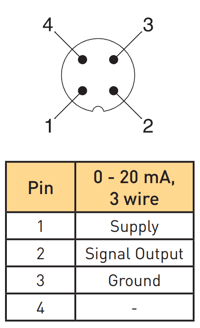

Parker SCT Temperature Sensor Dimensions Parker SCT Temperature Sensor Electrical

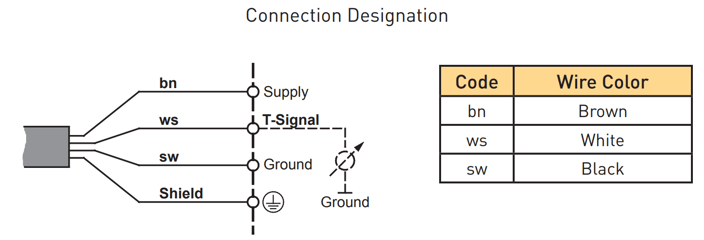

 SCT Temperature Sensor Connection Designation
