Wireless Pressure Sensors | Parker SensoNODE™ Blue

 Parker SensoNODE Blue Pressure Sensors

 FEATURES

  • For commonly used pressures
    Ranges: 0-150 psi, 0-1500 psi, 0-3625 psi, 0-5800 psi, 0-8700 psi
  • User definable measurement units
    (psi or bar)
  • Ports: MNPT, SAE, couplings (push-button, sleeve operated, EMA3)
  • Corrosion resistant materials
  • User selectable scan and transmit rates (1, 2, 5 or 10 seconds)
Back to SensoNODE Main Page

 Technical Data

PRESSURE SENSORS  Parker SensoNODE Blue Pressure Sensor 1 Parker SensoNODE Blue Pressure Sensor 2
Parker SensoNODE Blue Pressure Sensor 3

Parker SensoNODE Blue Pressure Sensor 4
 		 Parker SensoNODE Blue Pressure Sensor 5
Body Seals Fluorocarbon Fluorocarbon Fluorocarbon Fluorocarbon Fluorocarbon
Housing Material Polycarbonate Polycarbonate Polycarbonate Polycarbonate Polycarbonate
Port 1/4" Male NPT -4 SAE -4 SAE -4 SAE -4 SAE
Wetted Parts Material 17-4 Stainless 17-4 Stainless 17-4 Stainless 17-4 Stainless 17-4 Stainless
Measurement Range (pressure) 0-150 psi 0-1500 psi 0-3625 psi 0-5800 psi 0-8700 psi
Measurement Range (temp) -40° to 230°F -40° to 230°F -40° to 230°F -40° to 230°F -40° to 230°F
Max. Overload Pressure 225 psi 2250 psi 5440 psi 8700 psi 13,050 psi
Burst Pressure 4x 4x 4x 4x 4x
Accuracy (max)
 1.5% 1.5% 1.5% 1.5% 1.5%
Response Time (min) 1 sec 1 sec 1 sec 1 sec 1 sec
Ambient Temp Range -4° to 167°F -4° to 167°F -4° to 167°F -4° to 167°F -4° to 167°F
Media Temp Range -40° to 185°F -40° to 185°F -40° to 185°F -40° to 185°F -40° to 185°F
Certifications FCC, IC, CE FCC, IC, CE FCC, IC, CE FCC, IC, CE FCC, IC, CE
Battery CR123A CR123A CR123A CR123A CR123A
IP Rating IP65 IP65 IP65 IP65 IP65

SensoNode Part Numbers

Parker SensoNODE Blue Pressure Sensor Dimensions
Part Number Pressure Rating (PSI) Port D H
 SNPT2-10-B-4MP 0-150 1/4" Male NPTF ø1.88" 2.66"
 SNPT2-100-B-4MO 0-1500 -4 SAE ø1.88" 2.72"
 SNPT2-250-B-4MO 0-3625 -4 SAE ø1.88" 2.72"
 SNPT2-400-B-4MO 0-5800 -4 SAE ø1.88" 2.72"
 SNPT2-600-B-4MO 0-8700 -4 SAE ø1.88" 2.72"

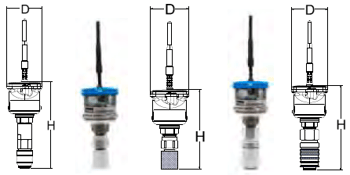

Quick Couplers

Part Number Pressure Rating (PSI) Port D H
SNPT2-10-B-4MP-SPE 0-150 Spectrum ø1.88" 4.60"
SNPT2-100-B-4MO-EMA 0-1500 EMA ø1.88" 4.00"
SNPT2-250-B-4MP-EMA 0-3625 EMA ø1.88" 4.00"
SNPT2-400-B-4MO-EMA 0-5800 EMA ø1.88" 4.00"
SNPT2-600-B-4MO-EMA 0-8700 EMA ø1.88" 4.00"
SNPT2-100-B-4MO-PD 0-1500 PD ø1.88" 4.40"
SNPT2-250-B-4MO-PD 0-3625 PD ø1.88" 4.40"
SNPT2-400-B-4MO-PD 0-5800 PD ø1.88" 4.40"

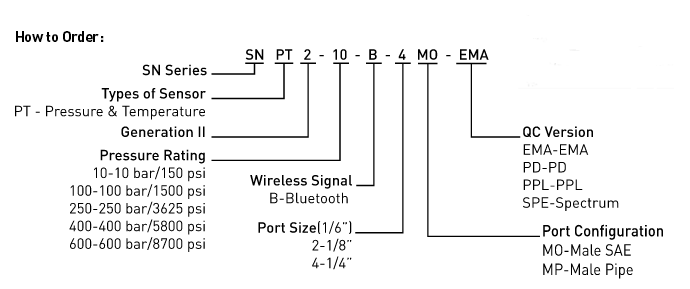

Part Number Nomenclature

 How to Order Parker SensoNODE Blue Pressure Sensor
