Wireless Humidity Sensors | Parker SensoNode

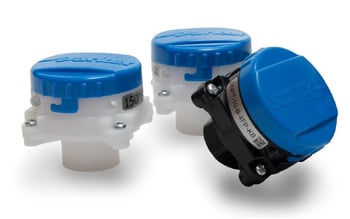

 SensoNode Humidity Sensors

 FEATURES

  • 0 - 100% relative humidity scale
  • Ideal for ambient condition and inert compressed gas monitoring
  • Ports: FNPT
  • Corrosion resistant materials
Back to SensoNode Main Page

 Technical Data

 HUMIDITY SENSORS SensoNode Humidity Sensor Black

Part No: SNHT-10-B-4FP-KB

SensoNode Humidity Sensor White

Part No: SNHT-10-B-4FP-WB

 Working Pressure  0-150 psi  0-150 psi
 Max Overload  150 psi Max 150 psi Max
 Burst Pressure  4x 4x
 Accuracy (77°F) ±5% RH Max  ±5% RH Max
 Resolution  0.1% RH   0.1% RH
 Scan/Transmit Rate 5 secs  5 secs
 Ambient Temp Range  -4°F to 167°F   -4°F to 167°F
 Operating Temp Range   -4°F to 167°F    -4°F to 167°F
 Port 1/4" Female NPTF 1/4" Female NPTF

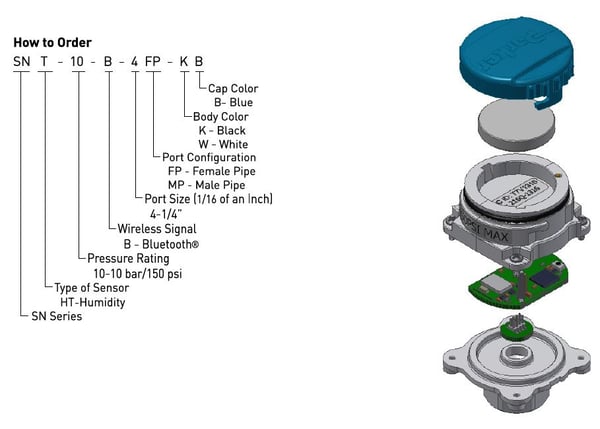

SensoNode Humidity Part Numbers

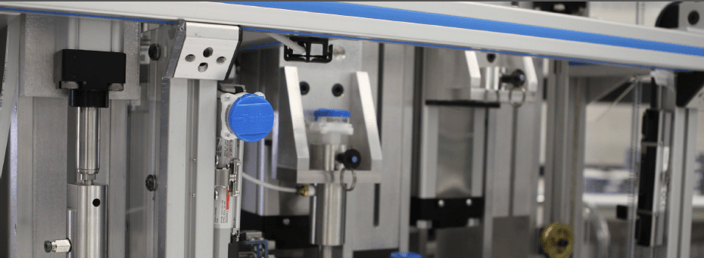

Parker SensoNoDe Installed
