SensoControl Serviceman | Parker SCM-152-2-02

    Serviceman - Digital Diagnostic Meter | Part # SCM-152-2-02


    The Parker SensoControl Serviceman was a rugged, portable diagnostic tool. It was an excellent alternative to conventional mechancal pressure gauges, until it was replaced by Serviceman Plus in Fall of 2013. Serviceman Plus offers additional functionality, 1 ms scan rate, larger screan, and comes in analog or CAN version.
    The Serviceman meters can be purchased individually or in kits. For a Serviceman kit, please see the bottom of this page. Other SensoControl meters and gauges are available, please go to SensoControl Meter Selection to compare different SensoControl meters.

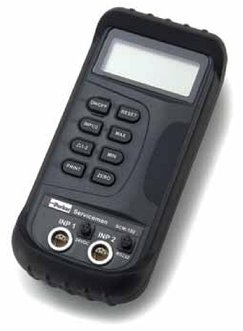

      SensoControl Serviceman Digital Meter

    User Manuals:


    Capabilities:

    • Hand held diagnostic meter

    Measure and Display:

    • Pressure
    • Flow
    • RPM (rotations per minute)
    • Temperature

    Features:

    • Intuitive Operation
    • 2 Sensor Inputs
    • Auto-Sensor Recognition
    • Min/Max Memory
    • 2-ms Scan Rate
    • Store Data on PC

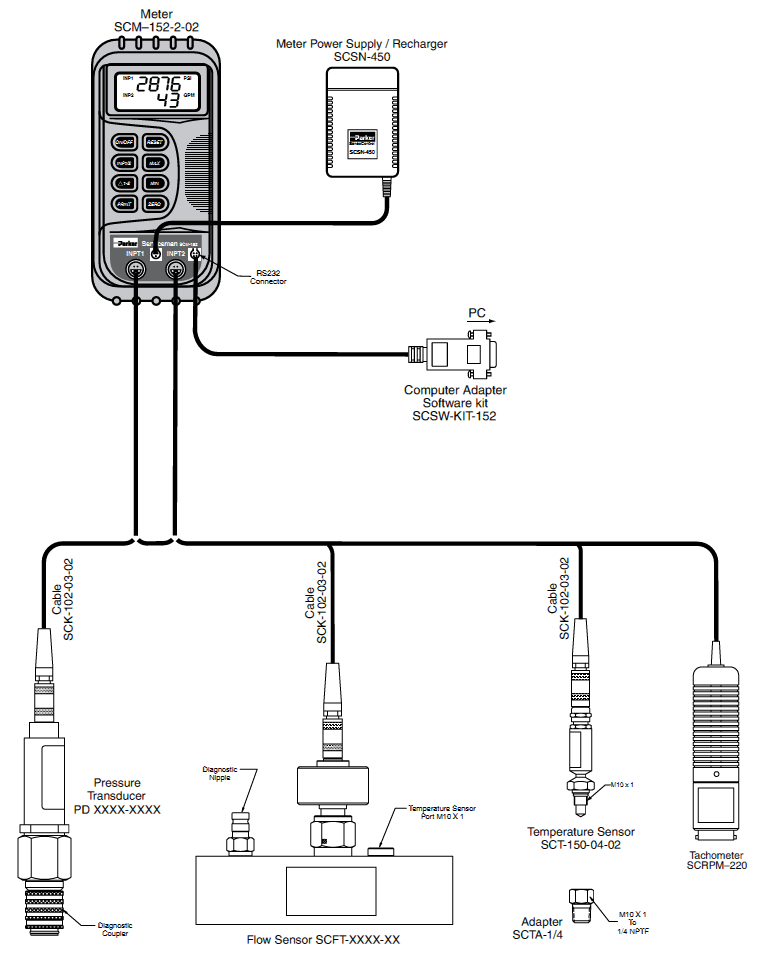

    Connection Diagram | Serviceman SCM-152-2-02

    Serviceman Connection Diagram





    SensoControl Serviceman Kit

     Senso Control Servicemaster Kit

     Serviceman Kit Contents

    • Case (SCC-150)
    • Serviceman meter (SCM-152-2-02)
    • Transducers (one or two, different options available, see below)
    • Cable - one or two, 3 m (SCK-102-03-02)
    • Power Supply (SCSN-450)
    • Instructions Manual (SCM-152-TM)

    Code for Ordering Serviceman Kits

    PDS-3-C-TT-TT

    • C - Coupling style:
      • 2 = PD style
      • 4 = PDP style
      • 6 = EMA 3 style (female)
    • TT - Transducer pressure range (psi)
      (Order either one or two)
      • 01 = -14.5 - +235 (Blue)
      • 06 = 0 - 870 (Green)
      • 15 = 0 - 2175 (Yellow)
      • 40 = 0 - 5800 (Orange)
      • 60 = 0 - 8700 (Red)



    SensoControl Accessories

     Parker Senso Control Accessories SensoControl Accessory Selection

    Analog Pressure Transducers

    CAN Pressure Transducers

    Analog Flow Sensors

    CAN Flow Sensors

    Adapters, Cables, Software

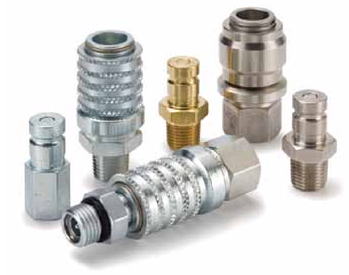

    Test Port Couplings


    SensoControl Serviceman Support



    Motion & Flow Control Products, Inc. supports its customers during and after the purchase of SensoControl Serviceman meters. Our in-house expert is available to train your mechanics at your location (anywhere in Northern California and North-Western Nevada). If you prefer, training can also be arranged in Motion & Flow Control Products, Inc.’s West Sacramento headquarters.

    TECHNICAL DATA
    Serviceman SCM-152-2-02

    METER

    • 2-line display shows both inputs
    • 4 digital LCD text display
    • Displays: pressure, temperature, flow and rotational speed

    INPUTS

    • Two 5-pin push/pull inputs
    • 0-3V
    • 12-bit A/D convertor
    • Auto-sensor recognition
    • 2 ms scanning rate

    OUTPUT

    • RS232 PC interference
      (Requires SCSW-KIT-152 software & adaptor)

    POWER REQUIREMENTS

    • 9V rechargeable Ni-MH battery
    • 5-hour battery life

    AMBIENT CONDITIONS

    • Operating Temperature 32°F - 122°F
    • Storing Temperature -4°F - 140°F

    HOUSING

    • ABS plastic case
    • Protective rubber cover
    • Carrying strap
    • Integral stand
