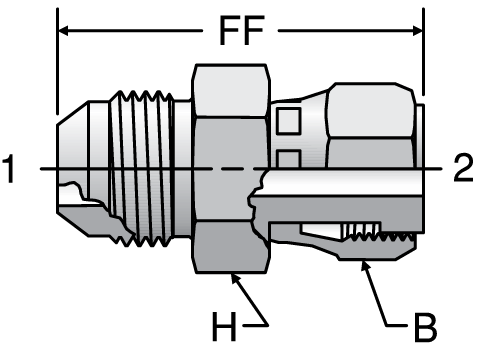

Parker XHL6 | 37° Flare to ORFS Swivel | Male Swivel Adapters

 Parker 37° ORFS Swivel to 37° Flare Male Swivel Adapters



Parker ORFS Swivel to 37° Flare Male Swivel Adapters

Part #: XHL6
Manufacturer: Parker



37° Flare / ORFS


TUBE

FITTING

PART #

END SIZE

B

HEX

(in.)

FF

(in.)

H
HEX

(inch)

(in.)

Dynamic
Pressure

(x 1,000 PSI)

1

(in.)

2

(in.)

-S

-SS

4 XHL6

1/4

1/4

11/16

1.50

5/8

7.5

9.2

6 XHL6

3/8

3/8

13/16

1.61

3/4

6.0

7.2

8 XHL6

1/2

1/2

15/16

1.90

7/8

6.0

7.2

10 XHL6

5/8

5/8

1 1/8

2.20

1 1/16

5.0

6.0

12 XHL6

3/4

3/4

1 3/8

2.50

1 1/4

5.0

6.0

16 XHL6

1

1

1 5/8

2.66

1 1/2

4.5

5.4

20 XHL6

1 1/4

1 1/4

1 7/8

2.80

1 11/16

4.0

4.8
