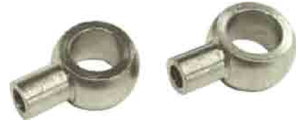

Weld On Banjo Heads are designed to make plumbing easy when banjo fittings are necessary. Simply braze 3/16" (4.75mm) tube to banjo head. They can also be countersunk for 1/4" tube.
Banjo Fittings
Weld On Banjo Heads
 |
 |
| PART NO. | A | B | C | D |
| BQ223 | 8mm | 10mm | 17mm | 25mm |
| BQ224 | 10mm | 10mm | 18mm | 25mm |
| BQ225 | 10mm | 7/16" | 19mm | 25mm |
Banjo Unions & Adapters
These fittings allow you to convert most joints to a sharp 90° legally & professionally. The swivel feature of these fittings gives you more flexibility in installation.
Banjo Unions
FEATURES:
  |
1. Imperial & Metric Threads 2. Zinc plated for corrosion resistance |
| PART NO. | THREAD | SEAT TYPE | A | B | C | D |
| BQ60 | 3/8" x 24NF | X | 1/2" | 10mm | 17mm | 27mm |
| BQ61 | M10 x 1 | X | 13mm | 10mm | 17mm | 27mm |
| BQ62 | 7/16" x 24NS X | X | 14mm | 7/16" | 18mm | 28mm |
| BQ63 | 1/2" x 20NF | X | 16mm | 1/2" | 20mm | 30mm |
Banjo Adapters
FEATURES:
  |
1. Imperial & Metric Threads 2. Zinc plated for corrosion resistance |
| PART NO. | A | B | C | THREAD |
| BQ150 | 10mm | 10mm | 42mm | 3/8" x 24NF (No. 3 JIC) |
| BQ151 | 10mm | 10mm | 21mm | 3/8" x 24NF (No. 3 JIC) |
| BQ152 | 10mm | 10mm | 21mm x (2) | 3/8" x 24NF (No. 3 JIC) |
| BQ155 | 10mm | 10mm | 42mm | 7/16" x 20NF (No. 4 JIC) |
Banjo Bolts
A banjo bolt for every application.
FEATURES:
  |
1. Reduced head size for appearance & less interference 2. Zinc plated for corrosion resistance 3. Imperial & Metric Threads |
| PART NO. | THREAD | HEAD STYLE | A | B |
| BQ8076 | M8 x 1 | R | 17mm [11/16"] | 10mm |
| BQ8077 | M8 x 1.25 | R | 16mm [5/8"] | 10mm |
| BQ8078 | M12 x 1.25 | R | 25mm [1"] | 14mm |
| BQ8083* | M10 x 1 | H | 34.5mm [1-3/8"] | 14mm |
| BQ8084* | M10 x 1.25 | H | 34.5mm [1-3/8"] | 14mm |
| BQ8085* | 3/8" x 24NF | H | 34.5mm [1-3/8"] | 9/16" |
| BQ8086 | M10 x 1.5 | R | 24mm [15/16"] | 11mm |
| BQ8087 | M11 x 1.25 | R | 24mm [15/16"] | 5/8" |
| BQ8088 | M10 x 1.5 | R | 27mm [1-1/16"] | 10mm |
| BQ8089 | 7/16" x 20NF | R | 24mm [15/16"] | 7/16" |
| BQ8090 | 7/16 x 24NS | R | 27mm [1-1/16"] | 1/2" |
| BQ8092 | M12 x 1.5 | R | 25mm [1"] | 14mm |
| BQ8093 | 3/8" x 24NF | R | 25mm [1"] | 14mm |
| BQ8094 | M10 x 1 | R | 26mm [1"] | 14mm |
| BQ8095 | M10 x 1 | R | 22mm [7/8"] | 12mm |
| BQ8096 | 7/16" x 20NF | R | 27mm [1-1/16"] | 11mm |
| BQ8097 | 1/2" x 20NF | R | 30mm [1-3/16"] | 9/16" |
| BQ8098 | M12 x 1 | R | 21mm [13/16"] | 13mm |
| BQ8099 | M10 x 1.25 | R | 22mm [7/8"] | 12mm |
