Joiners for Automotive Brake and Clutch Lines | BrakeQuip

The recommended way to legally join two tubes together. BrakeQuip tube joiners allow you to join tubes professionally and safely.



FEATURES:

 Brakequip - Tube Joiners
Brakequip - Tube Joiners
1. Imperial & Metric Threads

2. Inverted seat & drill point seats available

3. Zinc plated for corrosion resistance

Tube Joiners

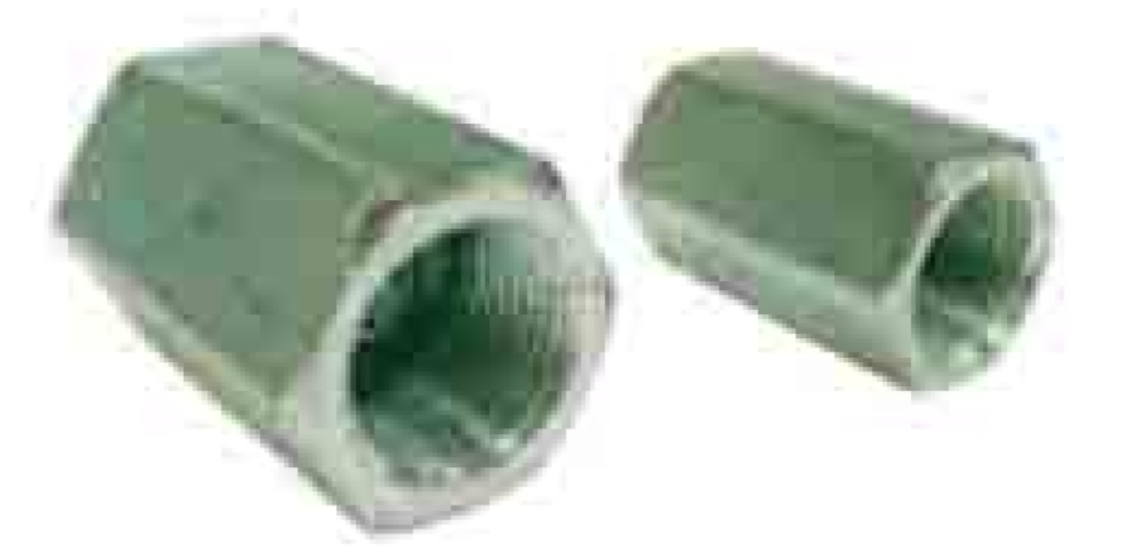

Female Tube Joiners

PART NO. THREAD SEAT TYPE A B
BQ110 3/8' x 24NF X 1/2" 22.2mm
BQ111 7/16' x 24NS X 9/16' 25.0mm
BQ112 1/2' x 20NF X 5/8' 25.0mm
BQ113 5/8' x 18NF X 3/4' 29.0mm
BQ114 M10 x 1 Y 13.0mm 29.0mm
BQ115 3/8' x 24NF Y 1/2' 29.0mm
BQ116 M12 x 1 X 5/8' 25.0mm
BQ117 M10 x 1 X 13.0mm 22.0mm
BQ119 9/16' x 18NF X 3/4' 27.0mm
BQ147 NEW M12 x 1 Y 16.0mm 28.0mm

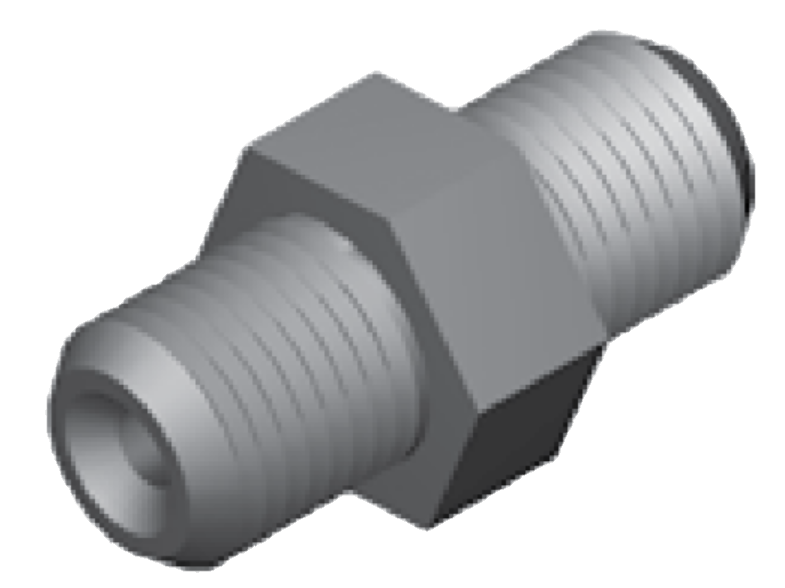

Female Hose Joiner

 Brakequip - Female Hose Joiner

DESCRIPTION:

- 3/8" x 24NF

- No. 3 JIC (AN)

Joins 3/8" x 24NF female fittings - universal design for both seat types.
