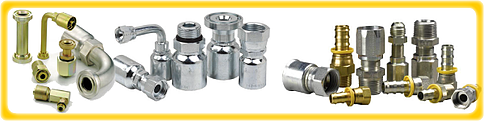

Hose Fittings (Hose Ends) | for Parker Hoses
IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Select your hose fittings to go with the hose you are using:
Consult the list in the right margin to see what fitting to use with different Parker hoses. If you already understand what series fittings you need, use the list in the left margin and select your fittings by series.
| 201 Transportation Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE 100R5, J1402 AII |
Use with the Parker fittings: 20, 22 or 26 Series |
| 206 Transportation Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE 100R5, J1402 AII |
Use with the Parker fittings: 20, 22 or 26 Series |
| 213 Transportation Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE J1402 AI |
Use with the Parker fittings: 21, 23 or 26 Series |
| 225 Transportation Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE 100R5 |
Use with the Parker fittings: 20, 22 or 26 Series |
| 244 Refrigerant Hose Reinforcement: 1 braid, steel wire SAE J2064 Type B, Class I |
Use with the Parker fittings: 26 Series |
| 266 Transportation Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE J1402 AII |
Use with the Parker fittings: 20, 22 or 26 Series |
| 271 Transportation Hose Reinforcement: 1 or more braid, fiber SAE J1402 A |
Use with the Parker fittings: 25 Series |
| 285 Refrigerant Hose Reinforcement: 1 braid, fiber SAE J2064 Type C |
Use with the Parker fittings: 21, 23 or 26 Series |
| 293 Air Brake Hose Reinforcement: 1 braid, fiber SAE J1402 AI |
Use with the Parker fittings: 21, 23 or 26 Series |
| 302 Hydraulic Hose Reinforcement: 2 braids, steel wire SAE 100R2AT |
Use with the Parker fittings: 30 or 43 Series |
| 304 Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 341 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R9 |
Use with the Parker fittings: 43 Series |
| 422 Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 42 or 43 Series |
| 424 Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 43 Series |
| 426 Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 43 Series |
| 431 Hydraulic Hose Reinforcement: 2 braids, steel wire SAE 100R16 |
Use with the Parker fittings: 42 or 43 Series |
| 436 Hydraulic Hose Reinforcement: 2 braids, steel wire SAE 100R16 |
Use with the Parker fittings: 42 or 43 Series |
| 601 Hydraulic Hose Reinforcement: 2 braids, fiber SAE 100R3 |
Use with the Parker fittings: 43 Series |
| 701 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE |
Use with the Parker fittings: 70 Series |
| 711 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R11 |
Use with the Parker fittings: 71 Series |
| 721 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R12 |
Use with the Parker fittings: 71 Series |
| 731 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE |
Use with the Parker fittings: 73 Series |
| 761 Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 76 Series |
| 774 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE |
Use with the Parker fittings: 71 Series |
| 781 Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R13 |
Use with the Parker fittings: 78 Series |
| 801 Multipurpose Hose Reinforcement: 1 braid, fiber SAE |
Use with the Parker fittings: 82 Series |
| 804 Dry Air, Hot Water Hose Reinforcement: 1 braid, fiber SAE |
Use with the Parker fittings: 82 Series |
| 811 Suction & Return Hose Reinforcement: layers of fiber spiral & one helical wire SAE 100R4 |
Use with the Parker fittings: 81 or 88 Series |
| 821 Multipurpose Hose Reinforcement: 1 braid, fiber SAE |
Use with the Parker fittings: 82 Series |
| 836 Multipurpose-High Temp Hose Reinforcement: 1 braid, fiber SAE |
Use with the Parker fittings: 82 or HY Series |
| 881 Suction & Return Hose Reinforcement: layers of fiber spiral & one helical wire SAE 100R4 |
Use with the Parker fittings: 43, 81 or 88 Series |
| 221FR Marine Fuel & Engine Hose Reinforcement: 1 braid, steel wire SAE J1527 Type A Class I |
Use with the Parker fittings: 20, 22 or 26 Series |
| 301LT Hydraulic Hose Reinforcement: 2 braids, steel wire SAE 100R2AT |
Use with the Parker fittings: 43 Series |
| 351ST Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 351TC Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 421WC Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 43 Series |
| 451ST Hydraulic Hose Reinforcement: 1 or 2 braids, steel wire SAE 100R17 |
Use with the Parker fittings: 43 Series |
| 451ST - size 20 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R17 |
Use with the Parker fittings: 43 Series |
| 451TC Hydraulic Hose Reinforcement: 1 or 2 braids, steel wire SAE 100R17 |
Use with the Parker fittings: 43 Series |
| 451TC - size 20 Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R17 |
Use with the Parker fittings: 43 Series |
| 451TC - Twin Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R17 |
Use with the Parker fittings: 43 Series |
| 471ST Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 471TC Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 471TC - Twin Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 472TC Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series |
| 482ST Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 42 or 43 Series |
| 482TC Hydraulic Hose Reinforcement: 1 braid, steel wire SAE 100R1AT |
Use with the Parker fittings: 42 or 43 Series |
| 721ST Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R12 |
Use with the Parker fittings: 71 Series |
SAE 100R12 |
Use with the Parker fittings: 71 Series |
| 772ST Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R12 |
Use with the Parker fittings: 71 Series |
| 772TC Hydraulic Hose Reinforcement: 4 spiral, steel wire SAE 100R12 |
Use with the Parker fittings: 71 Series |
| 782ST Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R13 |
Use with the Parker fittings: 78 Series |
| 782TC Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R13 |
Use with the Parker fittings: 78 Series |
| 791TC Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R15 |
Use with the Parker fittings: 79 Series |
| 792ST Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R15 |
Use with the Parker fittings: 79 Series |
| 792TC Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R15 |
Use with the Parker fittings: 79 Series |
| 811HT High Temp Suction & Return Hose Reinforcement: layers of fiber spiral & one helical wire SAE 100R4 |
Use with the Parker fittings: 81 or 88 Series |
| 821FR Multipurpose-Fire Resistant Hose Reinforcement: 1 braid, fiber SAE |
Use with the Parker fittings: 82 Series |
| AX Hydraulic Hose Reinforcement: 1 braid, steel wire SAE |
Use with the Parker fittings: HY Series |
| BXX Hydraulic Hose Reinforcement: 2 braids, steel wire SAE 100R2AT |
Use with the Parker fittings: HY Series |
| CAH Compressed Air Hose Reinforcement: 2 braid, 1 fiber & 1 steel SAE |
Use with the Parker fittings: 26 Series |
| F42 Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE |
Use with the Parker fittings: 70 or 79 Series |
| JK Hydraulic Hose Reinforcement: 2 braids, steel wire SAE |
Use with the Parker fittings: 43 Series: 10143-4-4, -4-6, -6-4 or -6-6 only |
| P35 Hydraulic Hose Reinforcement: 4 or 6 spiral, steel wire SAE 100R13 |
Use with the Parker fittings: S6 Series |
| SS23CG CNG & LPG Hose Reinforcement: 1 braid, steel wire SAE |
Use with the Parker fittings: 26 Series |
| SS25UL LPG Hose Reinforcement: 2 braid, 1 fiber & 1 stainless steel wire SAE |
Use with the Parker fittings: 20 or 22 Series |
Select your hose fittings numerically by series
| 20 Series Field attachable Fittings |
Use with the following Parker hoses: 201, 206, 225, 266, 221FR, SS25UL |
| 21 Series Field attachable Fittings |
Use with the following Parker hoses: 213, 285, 293 |
| 22 Series Field attachable Fittings |
Use with the following Parker hoses: 201, 206, 221FR, 225, 266, SS25UL |
| 23 Series Field attachable Fittings |
Use with the following Parker hoses: 213, 285, 293 |
| 25 Series Crimp Fittings |
Use with the following Parker hoses: 271 |
| 26 Series Crimp Fittings |
Use with the following Parker hoses: 201, 206, 213, 221FR, 225, 244, 266, 285, 293, SS23CG |
| 30 Series Field Attachable Fittings |
Use with the following Parker hoses: 302 |
| 42 Series Field Attachable Fittings |
Use with the following Parker hoses: 422, 431, 436, 482TC, 482ST |
| 43 Series Crimp Fittings |
Use with the following Parker hoses: 301LT, 302, 304, 341, 351TC, 351ST, 422, 421WC, 424, 426, 431, 436, 451TC, 451ST, 471TC, 471ST, 472TC, 482TC, 482ST, 601, 881 |
| 70 Series Crimp Fittings |
Use with the following Parker hoses: 701, F42-8 |
| 71 Series Crimp Fittings |
Use with the following Parker hoses: 711, 721, 721TC, 721ST, 772TC, 772ST, 774 |
| 73 Series Crimp Fittings |
Use with the following Parker hoses: 731 |
| 76 Series Crimp Fittings |
Use with the following Parker hoses: 761 |
| 78 Series Crimp Fittings |
Use with the following Parker hoses: 781, 782TC, 782ST |
| 79 Series Crimp Fittings |
Use with the following Parker hoses: 791TC, 792TC, 792ST, F42 |
| 81 Series Crimp Fittings |
Use with the following Parker hoses: 811, 811HT, 881 |
| 82 Series Barb Fittings |
Use with the following Parker hoses: 801, 804, 821, 821FR, 831, 836 |
| 88 Series Barb Fittings |
Use with the following Parker hoses: 811, 811HT, 881 |
| HY Series Crimp Fittings |
Use with the following Parker hoses: AX, BXX |
| S6 Series Crimp Fittings |
Use with the following Parker hoses: P35 |
| TB Series Clamp Fittings |
Use with the following Parker hoses: Low pressure GP hoses |
What to do if you do not see a fitting listed
Select an option that best suits you:
- Fill out the FAST ANSWERS form to the top of this page and someone will get back to you within 2 business hours.
- Call our customer service department for help: 888.715.4673
- Try to find an adapter to convert to the thread you need
