Parker 32PLPBHP | Plug-In Bulkhead Union | Prestolok PLP Composite Push-to-Connect Fittings
Plug-In Bulkhead Union Part #: 32PLPBHP |
PART # | TUBE SIZE (IN) |
L1 | L2 | ∅T |
32PLPBHP-4M | 5/32 (4M) | .26 | 1.080 | .62 |
32PLPBHP-4 | 1/4 | .26 | 1.240 | .75 |
32PLPBHP-6M | 5/16 (6M) | .30 | 1.280 | .87 |
32PLPBHP-6 | 3/8 | .30 | 1.630 | 1.12 |
32PLPBHP-8 | 1/2 | .30 | 1.710 | 1.25 |
Fixing Hole
Minimum distance between fittings. Diameter of fixing hole.
D | 5/32 | 1/4 | 5/16 | 3/8 | 1/2 | |
T | (in) | 5/8 | 3/4 | 7/8 | 1-1/8 | 1-1/4 |
(mm) | 15.87 | 19.05 | 22.22 | 28.57 | 31.75 | |
N | (in) | .89 | 1.00 | 1.08 | 1.34 | 1.50 |
Fixing Hole Installation

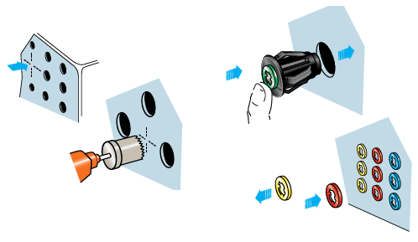

Installation 1. Mark out the fixing hole 2. Make hole in panel 3. Push the fitting into place 4. To identify circuits, remove the black release button and replace with colored one |
