Connect Under Pressure Hydraulic Quick Couplers | Parker 5000 Series Nipples

Parker 5000 Series QC - Up to 1" Body Size NIPPLES


Sizes 1/2"

Go to Parker 5000 Series Couplers
Select Another Hydraulic QC



Specifications for Parker 5000 Series



Body
Size

in.

Part
No.

Steel

Thread
Size

NPTF

Thread
Size

ORB

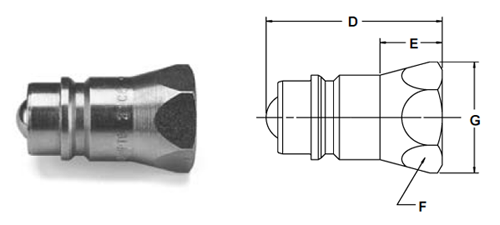

Dimensions (in.)

Overall
Length

D

Wrench

Flats

F

Largest
Diameter

G

Complete Coupling

Part Number

1/2

8010-4

1/2-14

–

1.95

1.06

1.23

5000-4

1/2

8010-15

–

3/4-16

1.95

1.06

1.23

-

1/2

8010-16

–

7/8-14

1.95

1.06

1.23

-



Body Size (in.)

1/2

Rated Pressure (PSI)

2500

Rated Flow (GPM)

12

Temperature Range (std seals)

-40° to +250°F
