Connect Under Pressure Hydraulic Quick Couplers | Parker 8200 Series Nipples
 |
NIPPLES Female Thread Sizes 1/2" Go to Parker 8200 Series Couplers Select Another Hydraulic QC |
Specifications for Parker 8200 Series
|
Body Size (in.) |
Part No. Steel |
Thread Size NPTF |
Thread Size ORB |

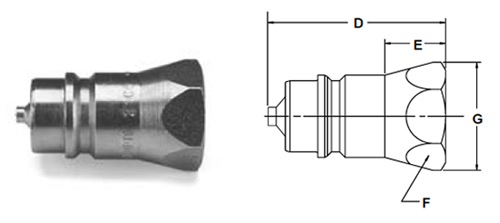

Dimensions (in.) |
|||
|
Overall Length D |
Wrench Flats F |
Largest Diameter G |
Complete Coupling Part Number |
||||
|
1/2 |
8010-4 |
1/2-14 |
– |
1.95 |
1.06 |
1.23 |
8200-4 |
|
1/2 |
8010-4P* |
1/2-14 |
– |
1.95 |
1.06 |
1.23 |
- |
|
1/2 |
8010-15 |
– |
3/4-16 |
1.95 |
1.06 |
1.23 |
8200-15 |
|
1/2 |
8010-15P* |
– |
3/4-16 |
1.95 |
1.06 |
1.23 |
- |
|
1/2 |
8010-16 |
– |
7/8-14 |
1.95 |
1.06 |
1.23 |
8200-16 |
|
1/2 |
8010-16P* |
– |
7/8-14 |
1.95 |
1.06 |
1.23 |
- |
* Poppet design
|
Body Size (in.) |
1/2 |
|
Rated Pressure (PSI) |
3000 |
|
Rated Flow (GPM) |
12 |
|
Temperature Range (std seals) |
-40° to +250°F |
