Connect Under Pressure Hydraulic Quick Couplers | Parker 9200 Series Nipples

Parker 9200 Series QC - Up to 1" Body Size NIPPLES


Sizes 1/2"


Go to Parker 9200 Series Couplers
Select Another Hydraulic QC



Specifications for Parker 9200 Series



Body

Size

(in.)

Part

No.

Steel

Thread

Size

NPTF

Thread

Size

ORB

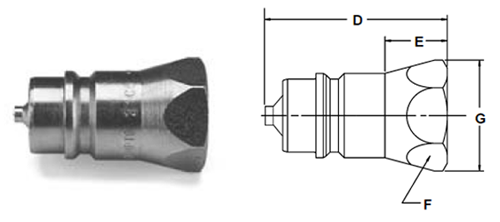

Dimensions (in.)

Overall

Length

D

Wrench

Flats

F

Largest

Diameter

G

1/2

H2-63-T6**

-

9/16-18

1.54

0.88

1.01

1/2

8010-4

1/2-14

-

1.95

1.06

1.23

1/2

8010-4P*

1/2-14

1.95

1.06

1.23

1/2

8010-15

3/4-16

1.95

1.06

1.23

1/2

8010-15P*

3/4-16

1.95

1.06

1.23

1/2

8010-16

7/8-14

1.95

1.06

1.23

1/2

8010-16P*

7/8-14

1.95

1.06

1.23

* Poppet design

 ** Connects with 9250-334 couplers

Body Size (in.)

1/2

Rated Pressure (PSI)

3000

Rated Flow (GPM)

12

Temperature Range (std seals)

-40° to +250° F
