General Purpose Hydraulic Quick Couplers | Parker 4000 Series Nipples



Parker 4000 Series QC - Up to 1" Body Size NIPPLES

Female Thread
Sizes 1/4" - 1"

Go to Parker 4000 Series Couplers
Select Another Hydraulic QC



Specifications for Parker 4000 Series



Body

Size

(in.)

Part

No.

Steel*

Thread

Size

NPTF

Thread

Size

ORB

Thread

Size

BSPP

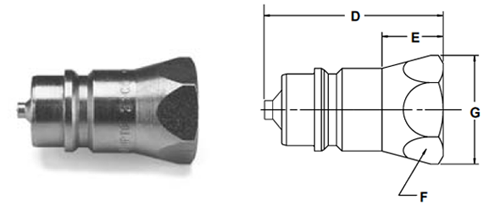

Dimensions (in.)

Overall

Length

D

Exposed

Length†

E

Hex

Siz

F

Largest

Diameter

G

1/4

4010-2P

1/4-18

–



1.39

0.71

0.75

0.87

1/4

4010-T6

–

9/16-18



1.49

0.81

0.75

0.87

3/8

4010-3P

3/8-18

–



1.50

.80

0.94

1.08

1/2

8010-4

1/2-14

–



1.95

1.09

1.06

1.23

1/2

8010-4P

1/2-14

–



1.95

1.09

1.06

1.23

1/2

8010-5

3/4-14

–



2.14

1.28

1.25

1.44

1/2

8010-5P

3/4-14

–



2.14

1.28

1.25

1.44

1/2

8010-15

–

3/4-16



2.06

1.20

1.06

1.23

1/2

8010-15P

–

3/4-16



2.06

1.20

1.06

1.23

1/2

8010-16

–

7/8-14



2.05

1.18

1.06

1.23

1/2

8010-16P

–

7/8-14



2.05

1.18

1.06

1.23

1/2

8010-29BSPP



–

1/2-14

1.95

1.09

1.06

1.18

3/4

4110-5

3/4-14

–



1.81

1.23

1.31

1.52

1

4010-6P

1-11 1/2

–



2.79

1.49

1.63

1.88

* P in part number designates Poppet design.

† This dimension represents the portion that is exposed when the nipple is inserted into the mating Parker Coupler.



Body Size (in.)

1/4

3/8

1/4

3/4

1

Rated Pressure (PSI)

3000

3000

3000

3000

3000

Rated Flow (GPM)

3

6

12

28

50

Temperature Range (std seals)

-40˚ to +250˚F
