General Purpose Hydraulic Quick Couplers | Parker 4200 Series Couplers
 |
COUPLERS Female Thread Sizes 3/8" - 1/2" Go to Parker 4200 Series Nipples Select Another Hydraulic QC |
Specifications for Parker 4200 Series
|
Body Size (in.) |
Part No. Steel* |
Thread Size NPTF |
Thread Size ORB |

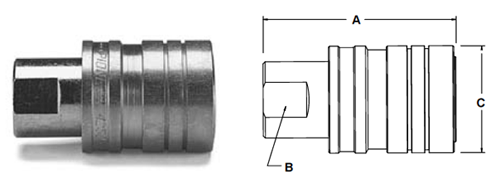

Dimensions (in.) |
||
|
Overall Length A |
Wrench Flats B |
Largest Diameter C |
||||
|
3/8 |
4250-3P |
3/8-18 |
– |
2.31 |
0.81 |
1.31 |
|
1/2 |
4250-4 |
1/2-14 |
– |
2.68 |
0.94 |
1.50 |
|
1/2 |
4250-4P |
1/2-14 |
– |
2.68 |
0.94 |
1.50 |
|
1/2 |
4250-15 |
– |
3/4-16 |
2.68 |
0.94 |
1.50 |
|
1/2 |
4250-15P |
– |
3/4-16 |
2.68 |
0.94 |
1.50 |
* P in part number designates Poppet design.
|
Body Size (in.) |
3/8 |
1/2 |
|
Rated Pressure (PSI) |
3000 |
3000 |
|
Rated Flow (GPM) |
6 |
12 |
|
Temperature Range (std seals) |
-40° to +250°F |
|
