General Purpose Hydraulic Quick Couplers | Parker 4200 Series Nipples



Parker 4200 Series QC - Up to 1" Body Size NIPPLES

Female Thread
Sizes 3/8" - 1/2"


Go to Parker 4200 Series Couplers
Select Another Hydraulic QC



Specifications for Parker 4200 Series



Body

Size

(in.)

Part

No.

Steel*

Thread

Size

NPTF

Thread

Size

ORB

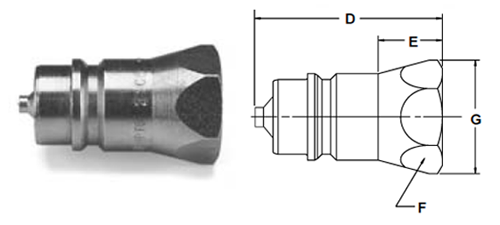

Dimensions (in.)

Overall

Length

D

Exposed

Length**

E

Hex

Size

F

Largest

Diameter

G

3/8

4010-3P

3/8-18

1.60

0.80

0.94

1.08

1/2

8010-4

1/2-14

1.95

1.09

1.06

1.23

1/2

8010-4P

1/2-14

1.95

1.09

1.06

1.23

1/2

8010-15

3/4-16

2.06

1.20

1.06

1.23

1/2

8010-15P

3/4-16

2.06

1.20

1.06

1.23

* P in part number designates Poppet design.

** This dimension represents the portion that is exposed when the nipple is inserted into the mating Parker Coupler.



Body Size (in.)

3/8

1/2

Rated Pressure (PSI)

3000

3000

Rated Flow (GPM)

6

12

Temperature Range (std seals)

-40° to +250°F
