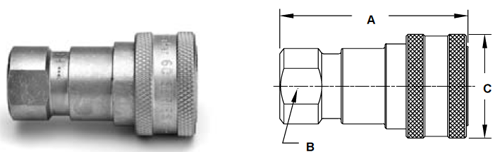

Dimensions for Sizes 1/8" - 1" | Parker 60 Series Couplers

Parker 60 Series QC - Up to 1" Body Size COUPLERS

Female Pipe Thread
Sizes 1/8" - 1"


Go to Sizes 1-1/2" - 2-1/2"
Go to Parker 60 Series Nipples
Select Another Hydraulic QC



Body

Size
(in.)

Part

No.
Brass

Part

No.
Steel

Part No.

Type 303
Stainless

Part No.

Type 316
Stainless

Thread

Size
NPTF

Thread

Size
ORB

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/8

BH1-60

H1-62

SH1-62

SSH1-62Y

1/8-27

1.90

0.68

0.96

1/8

H1-62-T4

SH1-62-T4

SSH1-62Y-T4

7/16-20

2.06

0.68

0.96

1/4

BH2-60

H2-62

SH2-62

SSH2-62Y

1/4-18

2.26

0.81

1.14

1/4

H2-62-T6

SH2-62-T6

SSH2-62Y-T6

9/16-18

2.41

0.81

1.14

3/8

BH3-60

H3-62

SH3-62

SSH3-62Y

3/8-18

2.49

0.88

1.40

3/8

H3-62-T8

SH3-62-T8

SSH3-62Y-T8

3/4-16

2.75

1.00

1.40

1/2

BH4-60

H4-62

SH4-62

SSH4-62Y

1/2-14

2.87

1.12

1.77

1/2

H4-62-T10

SH4-62-T10

SSH4-62Y-T10

7/8-14

3.05

1.12

1.77

3/4

BH6-60

H6-62

SH6-62

SSH6-62Y

3/4-14

3.56

1.31

2.14

3/4

H6-62-T12

SH6-62-T12

SSH6-62Y-T12

1-1/16-12

3.56

1.31

2.14

1

BH8-60

H8-62

SH8-62

SSH8-62Y

1-11 1/2

4.18

1.62

2.52

1

H8-62-T16

SH8-62-T16

SSH8-62Y-T16

1-5/16-12

4.18

1.62

2.52

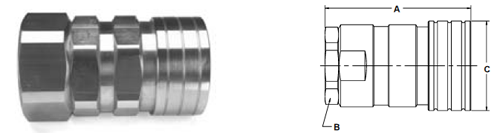

Dimensions for Sizes 1 1/2" - 2 1/2" | Parker 60 Series Couplers



Parker 60 Series QC - Up to 1" Body Size COUPLERS

Female Pipe Thread
Sizes 1 1/2" - 2 1/2"


Go to Sizes 1/8" - 1"
Go to Parker 60 Series Nipples
Select Another Hydraulic QC



Body

Size

(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Part No.

Type 316

Stainless

Thread

Size

NPTF

Thread

Size

ORB

Dimensions (in.)

Overall Length

A

Wrench Flats

B

Largest Diameter

C

1 1/2

BH12-60L

H12-62L

SH12-62L

SSH12-62LY

1 1/4-11 1/2

4.86

2.38‡

3.00

1 1/2

BH12-60N

H12-62N

SH12-62N

SSH12-62NY

1 1/2-11 1/2

4.86

2.38‡

3.00

1 1/2

H12-62-T20

SH12-62-T20

SSH12-62Y-T20

-

1 5/8-12

4.86

2.38‡

3.00

1 1/2

H12-62-T24

SH12-62-T24

SSH12-62Y-T24

-

1 7/8-12

4.86

2.38‡

3.00

2 1/2

BH2016-60

H2016-62

SH2016-62

SSH2016-62Y

2-11 1/2

5.57

3.75

4.10

2 1/2

BH2020-60

H2020-62

SH2020-62

SSH2020-62Y

2 1/2-8

6.04

3.75

4.10

2 1/2

BH2024-60

H2024-62

SH2024-62

SSH2024-62Y

3-8

6.96

4.00

4.35

‡ Wrench Flat on 303 Stainless is 2.50 in.



Optional Seals Suffix

W Ethylene Propylene (EPR)

Y Fluorocarbon

Z Neoprene

Perfluoroelastomer (Contact us)
