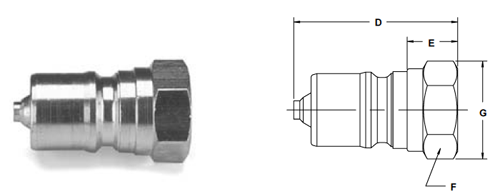

Parker 60 Series QC - Up to 1" Body Size NIPPLES

Female Pipe Thread
Sizes 1/8" - 1"


Go to Sizes 1-1/2" - 2-1/2"
Go to Parker 60 Series Couplers
Select Another Hydraulic QC

Body

Size

(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Part No.

Type 316

Stainless

Thread

Size

NPTF

Thread

Size

ORB

Dimensions (in.)

Overall

Length

D

Exposed

Length*

E

Wrench

Flats

F

Largest

Diameter

G

1/8

BH1-61

H1-63

SH1-63

SSH1-63Y

1/8/1927

1.26

0.44

0.56

0.65

1/8

H1-63-T4

SH1-63-T4

SSH1-63Y-T4

7/16/2020

1.41

0.59

0.69

0.79

1/4

BH2-61

H2-63

SH2-63

SSH2-63Y

1/4/2018

1.54

0.55

0.75

0.87

1/4

H2-63-T6

SH2-63-T6

SSH2-63Y-T6

9/16/2018

1.69

0.70

0.88

1.01

3/8

BH3-61

H3-63

SH3-63

SSH3-63Y

3/8/2018

1.68

0.54

0.88

1.01

3/8

H3-63-T8

SH3-63-T8

SSH3-63Y-T8

3/4/2016

1.94

0.80

1.00

1.15

1/2

BH4-61

H4-63

SH4-63

SSH4-63Y

1/2/2014

1.94

0.69

1.12

1.30

1/2

H4-63-T10

SH4-63-T10

SSH4-63Y-T10

7/8/2014

2.12

0.87

1.19

1.37

3/4

BH6-61

H6-63

SH6-63

SSH6-63Y

3/4/2014

2.43

0.79

1.38

1.59

3/4

H6-63-T12

SH6-63-T12

SSH6-63Y-T12

1-1/16-12

2.54

0.90

1.34

1.59

1

BH8-61

H8-63

SH8-63

SSH8-63Y

1-11 1/2

2.91

0.99

1.62

1.88

1

H8-63-T16

SH8-63-T16

SSH8-63Y-T16

1-5/16-12

2.91

0.99

1.62

1.88





Dimensions for Sizes 1 1/2" - 2 1/2" | Parker 60 Series Nipples

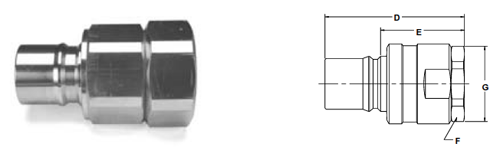

Parker 60 Series QC - Up to 1" Body Size NIPPLES

Female Pipe Thread
Sizes 1 1/2" - 2 1/2"


Go to Sizes 1/8" - 1"
Go to Parker 60 Series Couplers
Select Another Hydraulic QC



Body

Size
(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Part No.

Type 316

Stainless

Thread

Size

NPTF

Thread

Size

ORB

Dimensions (in.)

Overall

Length

D

Exposed Length*

E

Wrench

Flats

F

Largest Diameter

G

1 1/2

BH12-61L

H12-63L

SH12-63L

SSH12-63LY

1/4-11 1/2

4.76

2.69

2.38‡

2.75†

1 1/2

BH12-61N

H12-63N

SH12-63N

SSH12-63NY

1 1/2-11 1/2

4.76

2.69

2.38‡

2.75†

1 1/2

H12-63-T20

SH12-63-T20

SSH12-63Y-T20

-

1 5/8-12

4.76

2.69

2.38‡

2.75†

1 1/2

H12-63-T24

SH12-63-T24

SSH12-63Y-T24

-

1 7/8-12

4.76

2.69

2.38‡

2.75†

2 1/2

BH2016-61

H2016-63

SH2016-63

SSH2016-63Y

2-11 1/2

5.48

2.90

3.75

4.10

2 1/2

BH2020-61

H2020-63

SH2020-63

SSH2020-63Y

2 1/2-8

5.95

3.37

3.75

4.10

2 1/2

BH2024-61

H2024-63

SH2024-63

SSH2024-63Y

3-8

6.87

4.29

4.00

4.35

* This dimension represents the portion that is exposed when the nipple is inserted into the mating Parker Coupler.

‡ Hex on 303 Stainless is 2.50 in.



Optional Seals Suffix

W Ethylene Propylene (EPR)

Y Fluorocarbon

Z Neoprene

Perfluoroelastomer (Contact us)

† Largest diameter on Brass is 2.96" across Hex Corners.
