General Purpose Hydraulic Quick Couplers | Parker 6600 Series Couplers
 |
COUPLERS Female Thread Sizes 1/4" - 1" Go to Parker 6600 Series Nipples Select Another Hydraulic QC |
Specifications for Parker 6600 Coupler Series
|
Body Size (in.) |
Part No. Steel |
Thread Size NPTF |
Thread Size ORB |

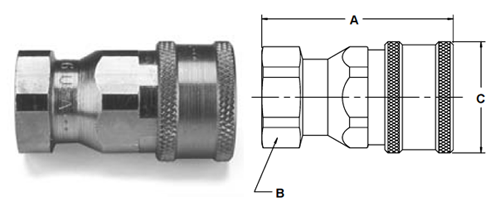

Dimensions (in.) |
||
|
Overall Length A |
Hex Size B |
Largest Diameter C |
||||
|
1/4 |
6601-2-4 |
1/8-27 |
— |
1.85 |
0.88 |
1.08 |
|
1/4 |
6601-4-4 |
1/4-18 |
— |
1.85 |
0.88 |
1.08 |
|
3/8 |
6601-6-6 |
3/8-18 |
— |
2.18 |
1.06 |
1.27 |
|
3/8 |
6608-6-6 |
— |
9/16-18 |
2.18 |
1.06 |
1.27 |
|
1/2 |
6601-8-10 |
1/2-14 |
— |
2.75 |
1.25 |
1.52 |
|
1/2 |
6601-12-10 |
3/4-14 |
— |
2.88 |
1.38 |
1.52 |
|
1/2 |
6608-8-10 |
— |
3/4-16 |
2.74 |
1.25 |
1.52 |
|
1/2 |
6608-10-10 |
— |
7/8-14 |
2.79 |
1.25 |
1.52 |
|
1/2 |
6608-12-10 |
— |
1 1/16-12 |
3.01 |
1.38 |
1.52 |
|
3/4 |
6601-12-12 |
3/4-14 |
— |
3.36 |
1.62 |
1.90 |
|
3/4 |
6608-12-12 |
— |
1 1/16-12 |
3.35 |
1.62 |
1.90 |
|
1 |
6601-16-16 |
1-11 1/2 |
— |
4.11 |
1.88 |
2.14 |
|
1 |
6608-16-16 |
— |
1 5/16-12 |
4.11 |
1.88 |
2.14 |
|
Body Size (in.) |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
|
Rated Pressure (PSI) |
5000 |
4000 |
4000 |
4000 |
4000 |
|
Rated Flow (GPM) |
0.8 |
6 |
12 |
28 |
50 |
|
Temperature Range (Nitrile seals) |
-40˚ to +250˚F |
||||
