General Purpose Hydraulic Quick Couplers | Parker HP (High Pressure) Couplers



Specifications for Parker HP (High Pressure) Coupler Series



Parker HP Series QC - Up to 1" Body Size COUPLERS

Female Thread
Sizes 1" - 1 1/2"


Go to Parker HP Series Nipples
Select Another Hydraulic QC

Specifications for Parker HP (High Pressure) Series



Body

Size

(in.)

Part

No.

Thread

Size

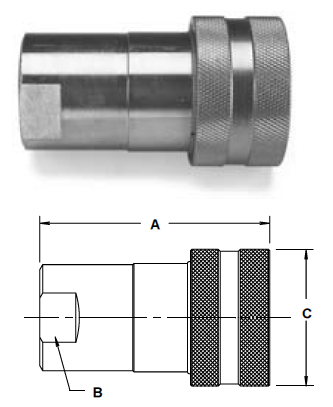

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1

HP-1001-16FP

1 11-1/2 NPSF

3.95

1.62

2.38

1

HP-1001-16FO

1 15/16-12ORB

4.35

1.62

2.38

1 1/2

HP-1501-24FP

1 1/2-11 1/2 NPTF

4.93

2.25

3.00

1 1/2

HP-1501-24FO

1 7/8 -12 ORB

4.93

2.25

3.00



Body Size (in.)

1

1-1/2

Rated Pressure (PSI)

5000

5,000

Rated Flow (GPM) 50

50

100

Temperature Range (std seals)

-40˚ to +250˚ F



Protective Plugs for Coupler

Protective Caps for Nipple

P/N

Material

Fits Coupler

P/N

Material

Fits Nipple

HPP–100

HPP–150

Aluminum

Aluminum

HP–1001

HP–1501

HPC–100

HPC–150

Aluminum

Aluminum

HP-1002

HP-1502
