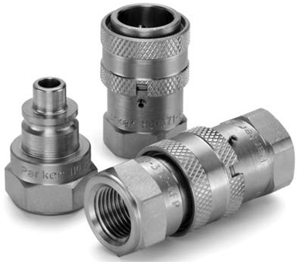

High Flow Hydraulic Quick Couplers | Parker HO Series

Parker HO Series Hydraulic Couplers Key Features

  • For high pressure applications: working pressures to 15,000 PSI (1,050 Bar) for the ¼” and 3/8” sizes; to 10,000 PSI (700 Bar) for the ½” size.
  • No internal valving to restrict flow.
  • Made of steel with electroless nickel plating for corrosion resistance.
  • Standard sleeve-lock feature which helps prevent accidental disconnect.
  • Standard Nitrile Body O-Ring. Backed up by PTFER washer to prevent seal extrusion.

HO Series Product Specifications



HO Series Couplers HO Series Nipples



Parker HO series are used in refineries, petro-chemical plants and paper and pulp mills for connecting hose lines for high pressure hydro-blasting of boilers and pipe lines. They are also used in oil fields on hose lines for internal and external pressure testing of tubing.
