High Flow Hydraulic Quick Couplers | Parker HO Series Nipples

Parker HO Series QC - Up to 1" Body Size NIPPLES


Sizes 1/4" - 1/2"


Go to Parker HO Series Couplers
Select Another Hydraulic QC

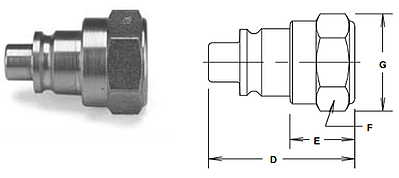

Specifications for Parker HO Series Nipples



Body

Size

(in.)

Part

No.

Thread

Size

NPTF

Overall

Length

D

Dimensions (in.)

Exposed

Length

E

Wrench

Flats

F

Largest

Diameter

G

1/4

HO-252-4FP

1/4-18

1.40

0.66

0.94

0.94

3/8

HO-372-6FP

3/8-18

1.44

0.70

1.08

1.08

1/2

HO-502-8FP

1/2-14

2.03

0.86

1.30

1.30



Body Size (in.)

1/4

3/8

1/2

Rated Pressure (PSI)

15,000

15,000

10,000

Rated Flow (GPM)

3

6

12

Temperature Range (std seals)

-40° to +250°F
