High-Flow Hydraulic Quick Couplers | Parker Water Service Series Couplers

Parker Water Service Series QC - Up to 1" Body Size COUPLERS


Sizes 3/4"

Go to Parker Water Service Series Nipples
Select Another Hydraulic QC

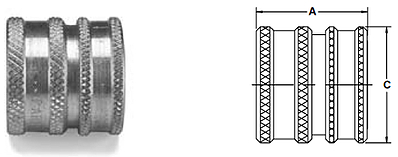

Specifications for Parker Water Service Series Couplers



Body
Size

in.

Part
No.

Thread
Size

NH

Overall
Length

A

Largest
Diameter

C

3/4

1163-60

3/4-11 1/2

1.16

1.21





Body Size (in.)

3/4"

Rated Pressure (PSI)

200

Rated Flow (GPM)

28

Temperature Range (std seals)

-40°F to +250°F
