High Pressure Hydraulic Quick Couplers | Parker 1141 Series Couplers

Parker 1141 Series QC - Up to 1" Body Size COUPLERS


Sizes 1/4"


Go to Parker 1141 Series Nipples
Select Another Hydraulic QC

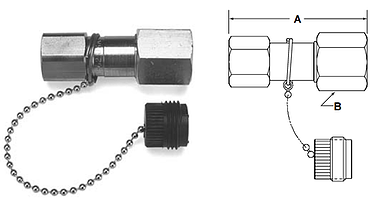

Specifications for Parker 1141 Series



Body
Size

in.

Part
No.

Thread
Size

NPTF

Length

Sleeve Hex

Wrench Flat

1/4

1141-62

1/4-18

2.75

1.00

0.88



Body Size (in.)

1/4

Rated Pressure (PSI)

10,000

Rated Connect-Under-Pressure Capability (PSI)

5000

Rated Flow (GPM)

3

Temperature Range (Polyurethane seals)

-30° to +180°F

Vacuum test

20 in/Hg

Torque to connect at 1000 PSI

47 in/lbs.
