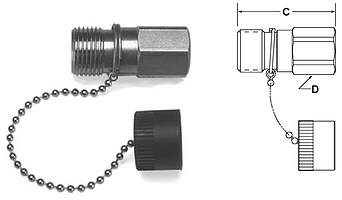

High Pressure Hydraulic Quick Couplers | Parker 1141 Series Nipples
 |
NIPPLES Sizes 1/4" Go to Parker 1141 Series Couplers Select Another Hydraulic QC |
Specifications for Parker 1141 Series
|
Body |
Part |
Thread |
Length |
Wrench Flat |
|
1/4 |
1141-63 |
1/4-18 |
2.00 |
0.88 |
|
Body Size (in.) |
1/4 |
|
Rated Pressure (PSI) |
10,000 |
|
Rated Connect-Under-Pressure Capability (PSI) |
5000 |
|
Rated Flow (GPM) |
3 |
|
Temperature Range (Polyurethane seals) |
-30° to +180°F |
|
Vacuum test |
20 in/Hg |
|
Torque to connect at 1000 PSI |
47 in/lbs. |
