High Pressure Hydraulic Quick Couplers | Parker TC Series Couplers

Parker TC Series QC - Up to 1" Body Size COUPLERS


Sizes 3/8"


Go to Parker TC Series Nipples
Select Another Hydraulic QC



Specifications for Parker TC Series



Body

Size

(in.)

Part

No.

Fitting

Thread
Size

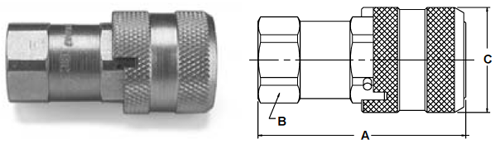

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

3/8

TC-371

3/8-18 NPSF

2.48

0.94

1.25

NPSF - National Pipe Straight Fuel



Body Size (in.)

3/8

Rated Pressure (PSI)

10,000

Rated Flow (GPM)

6

Temperature Range (std seals)

-15° to +400°F
