Non Spill Hydraulic Quick Couplers | Parker FEC Series Connect Under Pressure Nipples

Parker FEC Series QC - Up to 1" Body Size NIPPLES

Sizes 1/2" - 3/4"

Select Another Hydraulic QC
Parker FEC Series nipples mate with Parker FEM Series Couplers. (There are no FEC Series couplers.)

Applications

Parker FEC Series nipple provide connect-under-pressure capability with up to 3000 PSI of trapped pressure in the nipple and are ideal for applications where residual pressure makes reconnect difficult. Utilized primarily in the construc-tion equipment market, FEC Series products are commonly found on hydraulic attachments used in skid steer applications. The FC Series nipples mate with the Parker FEM Series couplers. FEC Series couplers are not produced.

To connect an FEC Series nipple holding residual pressure (up to 3,000 psi) with a non-pressurized FEM Series coupler, do not insert the nipple in to the coupler all at once. Insert the nipple only partially at first, then pause momentarily to allow pressure to equalize, then push the nipple in all the way to complete the connection.

Specifications for Parker FEC Series



Body

Size

(in.)

Part

No.

Steel

Mating

Half

Thread

Size

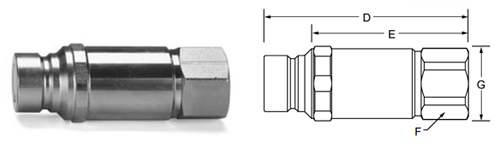

Dimensions (in.)

Overall

Length

D

Exposed

Length

E

Wrench

Flats

F

Largest

Diameter

G

1/2

FEC-502-8FP

FEM-501

1/2-14 NPSF

3.50

2.68

1.125

1.22

1/2

FEC-502-10FO

FEM-501

7/8-14 UNF

3.50

2.68

1.125

1.22

1/2

FEC-502-12FO

FEM-501

1 1/16-12 UNF

3.79

2.97

1.500

1.65

5/8

FEC-622-12FO

FEM-621

1 1/16-12 UN

4.19

3.39

1.500

1.65

3/4

FEC-752-12FO

FEM-751

1 1/16-12 UN

4.84

3.76

1.500

1.65

Standard Port Configurations

FP - Female Pipe Thread

FO - Female Straight Thread



Body Size (in.)

1/2

5/8

3/4

Rated Pressure (PSI)

3625

3625

3625

Rated Connect-Under-Pressure Capability

3000

1700

1500

Rated Flow (GPM)

12

20

26

Spillage (ML) (max. per disconnect)

0.020

0.03

0.150

Air Inclusion (ML) (max. per connect)

0.070

0.070

0.100
