Parker FEM Series QC - Up to 1" Body Size COUPLERS

Sizes 1/4" - 1"

Go to Parker FEM Series Nipples
Select Another Hydraulic QC



Specifications for Parker FEM Series



Body

Size

(in.)

Part

Number

Thread

Size

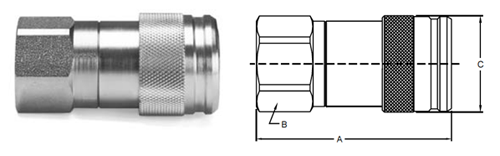

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4

FEM-251-4FP-NL

.250-18 NPSF

1.96

27mm

1.16

1/4

FEM-251-6FO-NL

.562-18 UNF

2.08

27mm

1.16

3/8

FEM-371-6FP-NL

.375-18 NPSF

2.89

30mm

1.26

3/8

FEM-371-8FO-NL

.750-16 UNF

2.89

30mm

1.26

1/2

FEM-501-8FP-NL

.500-14 NPSF

3.04

1.25

1.54

1/2

FEM-501-8FO-NL

.750-16 UNF

2.96

1.25

1.54

1/2

FEM-501-10FO-NL

.875-14 UNF

3.04

1.25

1.54

1/2

FEM-501-12FO-NL

1.062-12 UN

3.24

1.25

1.54

5/8

FEM-621-12FO-NL

1.062-12 UNF

3.70

40mm

1.69

3/4

FEM-751-12FP-NL

.750-14 NPSF

3.95

46mm

1.97

3/4

FEM-751-12FO-NL

1.062-12 UNF

3.95

46mm

1.97

1

FEM-1001-16FP-NL

1.000-11.5 NPSF

4.21

55mm

2.36

1

FEM-1001-16FO-NL

1.312-12 UNF

4.21

55mm

2.36



Standard Port Configurations

FP - Female Pipe Thread

FO - Female Straight Thread

BMF - Bulkhead Male Flare 37° JIC

BMS - Bulkhead Male Seal-lok

Other Fitting Port Configurations availbale upon request.



Body Size (in.)

1/4

3/8

1/2

5/8

3/4

1

Rated Pressure (PSI)

4568

3625

3625

3625

3625

2900

Rated Flow (GPM) 3 6

3

6

12

20

26

50

Temperature Range (std.seals)

-40 to +250° F

Spillage (ML)
(max. per disconnect)

0.015

0.015

0.02

0.03

0.15

0.2

Air Inclusion (ML)
(max. per connect)

0.02

0.02

0.07

0.07

0.1

0.15
