Non-Spill Hydraulic Quick Couplers | Parker FEM Series Nipples
 |
NIPPLES Sizes 1/4" - 1" Go to Parker FEM Series Couplers Select Another Hydraulic QC |
Specifications for Parker FEM Series Nipples
NOTE: Parker is currently updating the design of the FEM couplings. As of August 2021, the 3/8" and 1/2" sizes are updated to the new design, the rest of the sizes are to follow. The new design has a higher pressure rating of 5,000 PSI, improved Sleeve-Lok functionality, and better corrosion resistance. Read more on our FEM Series Design Changes blog.
|
Body Size (in.) |
Part Number |
Thread Size |

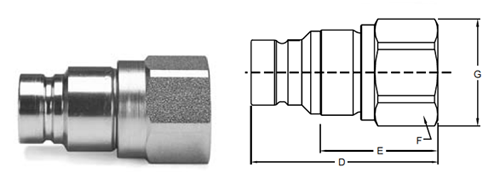

Dimensions (in.) |
|||
|
Overall Length |
Coupled Length |
Wrench Flats |
Largest Diameter |
|||
|
1/4 |
FEM-252-4FP |
1/4-18 NPSF |
1.71 |
3.98 |
22mm |
0.96 |
|
1/4 |
FEM-252-6FO |
9/16/18 UNF |
1.95 |
4.06 |
22mm |
0.96 |
|
3/8 |
FEM-372-6FP |
3/8-18 UNF |
2.48 |
4.43 |
30mm |
1.26 |
|
3/8 |
FEM-372-8FO |
3/4-16 UNF |
2.48 |
4.67 |
30mm |
1.26 |
|
1/2 |
FEM-502-8FP |
1/2-14 NPSF |
2.77 |
5.09 |
1.25 |
1.38 |
|
1/2 |
FEM-502-8FO |
3/4-16 UNF |
2.77 |
5.09 |
1.25 |
1.38 |
|
1/2 |
FEM-502-10FO |
7/8-14 UNF |
2.77 |
5.09 |
1.25 |
1.38 |
|
1/2 |
FEM-502-12FO |
1-1/16-12 UN |
3.02 |
5.59 |
1.25 |
1.38 |
|
5/8 |
FEM-622-12FO |
1-1/16-12 UN |
3.09 |
5.64 |
36mm |
1.57 |
|
3/4 |
FEM-752-12FP |
3/4-14 NPSF |
3.38 |
6.00 |
46mm |
1.97 |
|
3/4 |
FEM-752-12FO |
1-1/16-12 UN |
3.38 |
6.20 |
46mm |
1.974 |
|
1 |
FEM-1002-16FP |
1-11 1/2 NPSF |
3.85 |
6.79 |
55mm |
2.36 |
|
1 |
FEM-1002-16FO |
1-5/16 12 UN |
3.85 |
6.79 |
55mm |
2.36 |
Standard Port Configurations
FP - Female Pipe Thread
FO - Female Straight Thread
BMF - Bulkhead Male Flare 37° JIC
BMS - Bulkhead Male ORFS
Other Fitting Port Configurations are available upon request.
|
Body Size (in.) |
1/4 |
3/8 |
1/2 |
5/8 |
3/4 |
1 |
|
Rated Pressure (PSI) |
5000 |
5000 |
3625 |
3625 |
3625 |
2900 |
|
Rated Flow (GPM) 3 6 |
3 |
6 |
12 |
20 |
26 |
50 |
|
Temperature Range (std.seals) |
-40 to +250° F |
|||||
|
Spillage (ML) |
0.015 |
0.015 |
0.02 |
0.03 |
0.15 |
0.2 |
|
Air Inclusion (ML) |
0.02 |
0.02 |
0.07 |
0.07 |
0.1 |
0.15 |
