High-Pressure Non-Spill QC | Parker FET Series | Couplers




Parker FET Coupler Specs

Dimensions & Pressure Rating | Parker FET Couplers



SAE O-Ring Boss

Female NPTF

Code 62 Flange Head

Code 62 Flange Pad

Body Size

5/8”

3/4”

1”

1-1/2”

5/8”

3/4”

1”

1-1/2”

3/4”

1”

1-1/2”

3/4”

1”

1-1/2”

L (in)

4.66

5.44

5.83

7.08

4.52

5.44

5.83

7.08

7.60

7.78

9.83

5.45

5.83

6.82

D (in)

2.12

2.31

2.75

3.75

2.12

2.31

2.75

3.75

2.31

2.75

3.75

2.31

2.75

3.75

W1 (mm)

50

55

65

85

50

55

65

85

55

65

85

55

65

85

W2 (in)

1-5/8

2

2-3/16

2-5/8

1-5/8

2

2-3/16

2-5/8

2

2-3/16

2-5/8

2-3/4

3

2- 5/8

Rated Pressure* (psi)

5000

4000

3000

2500

5000

5000

5000

3000

6000

6000

4000

6000

6000

4000

Weight (lbs)

2.06

3.30

4.72

10.01

2.03

3.35

4.76

10.06

4.17

5.44

11.37

4.82

6.90

13.31

*The maximum dynamic pressure of the coupling is the lesser of the rated pressure of the coupling and port connection used. Contact us for additional body sizes and port configurations.

Part Numbers & Thread Sizes | Parker FET Couplers

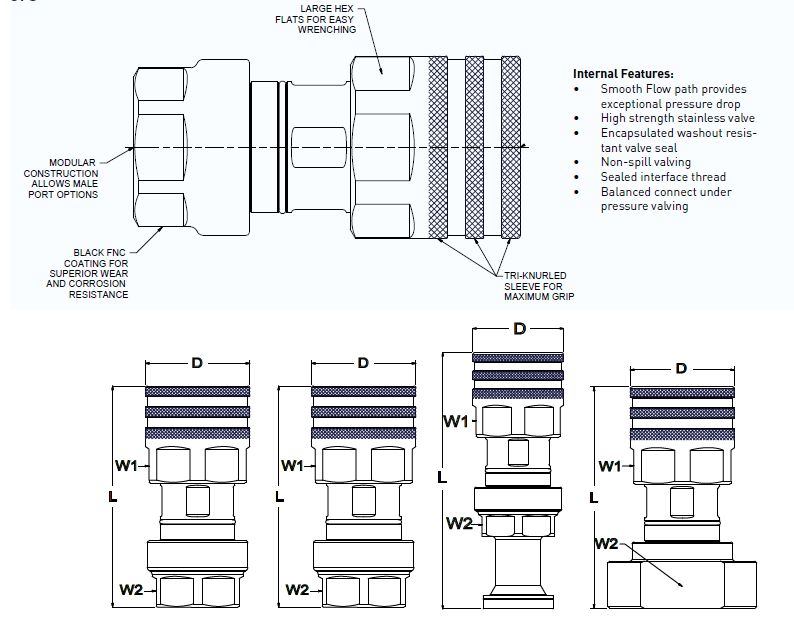

Parker FET CouplerParker FET Coupler Dimensions

Body

Size

Coupler

Part Number

Port

End

Length

(in)

Largest

Diameter (in)

Wrench Flats

W1

Wrench Flats

W2

3/8 FET-371-8FO  3/4-16 UNF 3.83  1.65 38mm  30mm
3/8  FET-371-8FP  1/2-14 NPTF  3.91  1.65  38mm  30mm
1/2  FET-501-10FO  7/8-14 UNF  3.82  2.05  48mm  1-1/2 in
1/2  FET-501-8FP  1/2-14 NPTF  3.70  2.05  48mm  1-1/2 in
5/8  FET-621-12FO  1 1/16-12 UNF  4.66  2.12  50mm 1-5/8 in
5/8  FET-621-12FP  3/4-14 NPTF  4.52  2.12  50mm 1-5/8 in
3/4  FET-751-16FO 1 5/16-12 UNF  5.44  2.31  55mm  2 in
3/4  FET-751-16FP  1-11/12 NPTF  5.44  2.31  55mm  2 in
1  FET-1001-20FO  1 5/8-12 UNF  5.83  2.75  65mm  2-3/16 in
1  FET-1001-20FP  1 1/14-11 1/2 NPTF  5.83  2.75  65mm  2-3/16 in
1-1/2  FET-1501-24FO 1 7/8-12 UNF  7.08  3.75  85mm  2-5/8 in
1-1/2  FET-1501-24FP  1 1/2-11 1/2 NPTF  7.08  3.75  85mm  2-5/8 in
2  FET-2001-32FO  2 1/2-12 UN  11.67  7.52  -  3-3/4 in
2  FET-2001-32FP  2-11 1/2 NPTF  11.67  7.52  -  3-3/4 in

Part Numbers & Thread Sizes | Parker FET Couplers - Code 62 Flange

 Parker FET Coupler Code 62 Flange HeadParker FET Coupler Code 62 Flange Head DimensionsParker FET Coupler Code 62 Flange PadParker FET Coupler Code 62 Flange Pad Dimensions



Body

Size

Coupler

Part Number

Port

End

Bolt

Thread Size

Length

(in)

Largest Diameter

(in)

Wrench Flats W1

(mm)

Wrench Flats

W2

(in)

3/4 FET-751-16SF Flange Head
 -  7.60  2.31  55 2
 3/4  FET-751-16SFP  Flange Pad
 7/16 - 14 UNC
 5.45  2.31  55  2-3/4
 1  FET-1001-20SF  Flange Head
 -  7.78  2.75  65 2-3/16
 1  FET-1001-20SFP  Flange Pad
 1/2 - 13 UNC
 5.83  2.75  65  3
 1-1/2  FET-1501-24SF  Flange Head
 -  9.83  3.75  85  2-5/8
 1-1/2  FET-1501-24SFP  Flange Pad
 5/8 - 11 UNC
 6.82  3.75  85  2-5/8
