Non Spill Hydraulic Quick Couplers | Parker FH Series Nipples

Parker FH Series QC - Up to 1" Body Size NIPPLES

Sizes 3/8"

Go to Parker FH Series Couplers
Select Another Hydraulic QC



Specifications for Parker FH Series



Body

Size

(in.)

Part

No.

Steel

Thread

Size

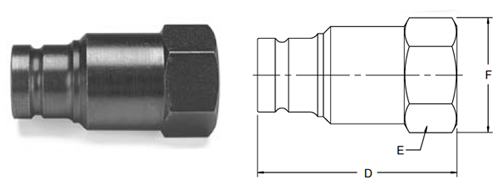

Dimensions (in.)

Overall

Length

D

Wrench

Flats

E

Largest

Diameter

F

3/8

3/8

FH-372-6FP

FH-372-6FB

3/8-18 NPTF
G3/8 -BSPP

2.12

2.12

1.00

1.00

1.23

1.23



Standard Port Configurations

FP - Female Pipe Thread

MP - Male Pipe Thread

FB - Female British Standard Parallel



Body Size (in.)

3/8

Rated Pressure (PSI)

10,000

Rated Flow (GPM)

6

Temperature Range

-40° to +250° F

Spillage (ML) (max. per disconnect)

.020

Air Inclusion (ML) (max. per connect)

.070
