Parker 50 Series Standard Hose Barb Nipple NIPPLES

Sizes 1/4"

Select Another Pneumatic QC



Specifications for Parker 50 Series



Body

Size

(in.)

Part

No.

Steel

Thread

Size

NPTF

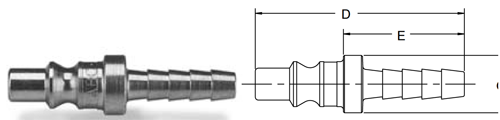

Dimensions (in.)

Overall

Length

Exposed

Length*

Largest

Diameter

1/4

A8C

1/4

1.63

0.82

.043

* This dimension represents a portion of the nipple that is exposed when the nipple is inserted in into a Parker 50 Series coupler.



Body Size (in.)

1/4

Rated Pressure (PSI)

300

Temperature Range (Std. seals)

-40° to +250° F.

Locking Device

4 balls
