General Purpose-Manual Connect Pneumatic Quick Couplers | Parker 70 Series Couplers

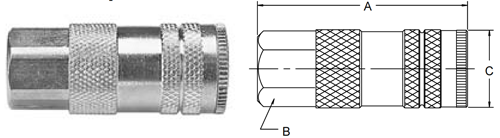

Parker 70 Series Female Pipe Thread Couplers COUPLERS

Sizes 1/4"

Go to Parker 70 Series Nipples
Select Another Pneumatic QC



Specifications for Parker 70 Series



Body
Size

(in.)

Part
No.

Brass

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

Wrench

Flats

Largest
Diameter

1/4

B73

1/4-18

2.40

0.75

0.90

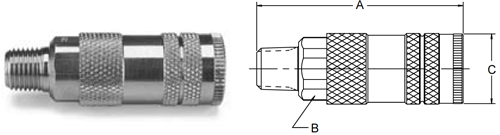

Parker 70 Series Male Pipe Thread Couplers COUPLERS

Sizes 1/4"

Go to Parker 70 Series Nipples
Select Another Pneumatic QC



Specifications for Parker 70 Series



Body
Size

(in.)

Part
No.

Brass

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

Wrench

Flats

Largest
Diameter

1/4

B72

1/4-18

2.62

0.75

0.90





Body Size (in.)

1/4

Rated Pressure (psi)

300

Temperature Range (Std. seals)

-40° to +250° F.

Locking Device

4 balls
