General Purpose-Manual Connect Pneumatic Quick Couplers | Parker 70 Series Nipples

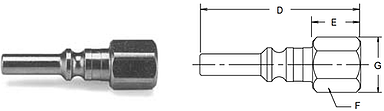

Parker 70 Series Female Pipe Thread Nipples NIPPLES

Sizes 1/4"

Go to Parker 70 Series Couplers
Select Another Pneumatic QC



Specifications for Parker 70 Series



Body
Size

(in.)

Part
No.

Brass

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

Exposed
Length*

Wrench

Flats

Largest
Diameter

1/4

L3C

1/4-18

2.10

0.77

0.56

0.77

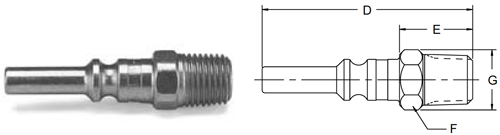

Parker 70 Series Male Pipe Thread Nipples NIPPLES

Sizes 1/4"

Go to Parker 70 Series Couplers
Select Another Pneumatic QC



Specifications for Parker 70 Series



Body
Size

(in.)

Part
No.

Brass

Thread
Size

NPTF

Dimensions (in.)

Overall
Length

Exposed
Length*

Wrench

Flats

Largest
Diameter

1/4

L2C

1/4-18

2.25

0.92

0.56

0.65

*This dimension represents a portion of the nipple that is exposed when the nipple is inserted into a Parker 70 Series coupler.





Body Size (in.)

1/4

Rated Pressure (psi)

300

Temperature Range (Std. seals)

-40° to +250° F.

Locking Device

4 balls
