General Purpose-Push to Connect Pneumatic Quick Couplers | Parker HA Series

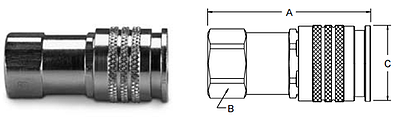

Parker HA Series Female Pipe Thread Couplers COUPLERS

Sizes 1/4"

Select Another Pneumatic QC

Parker HA Series couplings (formerly known as the 50A Series) are interchangeable with ARO's 210 series couplings.

  • The Push to Connect design allows for easy one hand operation.
  • HA Series couplings utilize a tubular valve for maximum flow and a built-in sleeve guard to minimize accidental disconnect.
  • The HA Series is only available in 1/4" body size. HA Series couplings have all brass bodies.
  • Standard seal material is Nitrile. Other port options available – contact us with questions.



Specifications for Parker HA Series - Female Pipe Thread



Body
Size

(in.)

NEW
Part No.

Brass

Thread
Size

NPSF

Dimensions (in.)

Overall
Length


A

Wrench

Flats


B

Largest
Diameter


C

1/4

HA-251-4FP

1/4-18

2.11

0.81

1.01







Parker HA Series Male Pipe Thread Couplers COUPLERS

Sizes 1/4"

Select Another Pneumatic QC



Specifications for Parker HA Series - Male Pipe Thread



Body
Size

(in.)

NEW
Part No.

Brass

Thread
Size

NPSF

Dimensions (in.)

Overall
Length

A

Hex
Size

B

Largest
Diameter

C

1/4

HA-251-4MP

1/4-18

2.26

0.81

1.01





Body Size (in.)

1/4

Rated Pressure (psi)

300

Temperature Range (Std. seals)

-40° to +250° F

Locking Device

4 balls

Vacuum Service

Not Recommended
