General Purpose-Push to Connect Pneumatic Quick Couplers | Heavy Duty Push-Lok Hose Barb | Parker HF Series

Parker HF Series Heavy Duty Push-Lok Hose Barb Couplers COUPLERS

Sizes 1/4 - 3/8"

Select Another Pneumatic QC



Specifications for Parker HF Series - Heavy Duty Push-Lok Hose Barb



Body

Size

(in.)

New

Part No.

Steel

Old

Part No.

Steel

Hose

I.D.

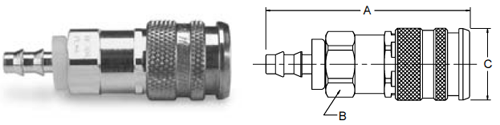

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4

HF-251-4PL-S

HF404PL-4

1/4

2.64

0.81

0.99

1/4

HF-251-6PL-S

HF404PL-6

3/8

2.78

0.81

0.99

3/8

HF-371-6PL-S

HF406PL-6

3/8

3.02

0.94

1.07

3/8

HF-371-8PL-S

HF406PL-8

1/2

3.07

0.94

1.07



Body Size (in.)

1/8

1/4

3/8

1/2

Rated Pressure (psi)

250

300

300

300

Temperature Range (Std. seals)

-40° to +250°F

Locking Device

5 balls

4 balls

6 balls

8 balls

Vacuum Data (inches Hg) Disconnected (coupler only) Connected



Not Recommended

-

27.4

27.4

27.4
