Parker HF Series Male Pipe Thread Nipples NIPPLES

Sizes 1/8"

Go to Parker HF Series Male Pipe Thread Couplers
Select Another Pneumatic QC



Specifications for Parker HF Series - 1/8" Male Pipe Thread Nipples



Body

Size

(in.)

New

Part No.

Brass

Old

Part No.

Brass

Thread

Size

NPTF

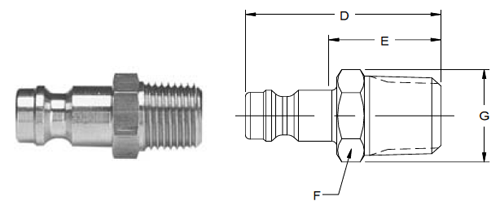

Dimensions (in.)

Overall

Length

D

Exposed*

Length

E

Hex

Size

F

Largest

Diameter

G

1/8

HF-124-2MP

HF702M-2

1/8-27

1.06

0.53

0.44

0.51

1/8

HF-124-4MP

HF702M-4

1/4-18

1.25

0.72

0.56

0.63

*This dimension represents the portion that is exposed when the nipple is inserted into a Parker HF series coupler.



Body Size (in.)

1/8

1/4

3/8

1/2

Rated Pressure (psi)

250

300

300

300

Temperature Range (Std. seals)

-40° to +250°F

Locking Device

5 balls

4 balls

6 balls

8 balls

Vacuum Data (inches Hg) Disconnected (coupler only) Connected



Not Recommended

-

27.4

27.4

27.4




For more information, please see Parker Catalog 3800.
