General Purpose-Push to Connect Pneumatic Quick Couplers | Standard Hose Barb | Parker RF Series Nipples
 |
NIPPLES Sizes 1/4" - 3/8" Go to Parker RF Series Standard Hose Barb Couplers Select Another Pneumatic QC |
Specifications for Parker RF Series - Standard Hose Barb
|
Body Size (in.) |
NEW Part No. |
Thread Size NPTF |

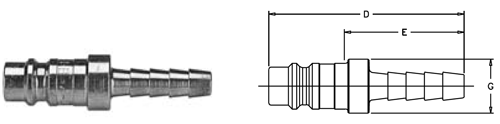

Dimensions (in.) |
||
|
Overall Length D |
Exposed* Length E |
Largest Diameter G |
|||
|
1/4 |
RF-254-4HB |
1/4 |
1.66 |
0.89 |
0.50 |
|
1/4 |
RF-254-6HB |
3/8 |
1.66 |
0.89 |
0.50 |
|
3/8 |
RF-374-6HB |
3/8 |
1.63 |
0.88 |
0.59 |
|
3/8 |
RF-374-8HB |
1/2 |
1.97 |
1.22 |
0.68 |
* This dimension represents a portion of the nipple that is exposed when the nipple is inserted into a Parker RF Series coupler.
|
Body Size (in.) |
1/4 |
3/8 |
|
Rated Pressure (psi) |
300 |
300 |
|
Temperature Range (std seals) |
-40° to +250°F |
-40° to +250°F |
|
Locking Device |
4 balls |
8 balls |
|
Vacuum Data (inches Hg) |
|
|
Orders & Quotes
 |
 |
 |
