General Purpose-Push to Connect Pneumatic Quick Couplers | Male Pipe Thread | Parker RF Series Nipples
 |
NIPPLES Sizes 1/4" - 3/8" Go to Parker RF Series Male Pipe Thread Couplers Select Another Pneumatic QC |
Specifications for Parker RF Series - Male Pipe Thread
|
Body Size (in.) |
NEW Part No. |
Thread Size NPTF |

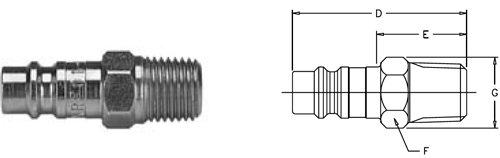

Dimensions (in.) |
|||
|
Overall Length D |
Exposed* Length E |
Wrench Flats F |
Largest Diameter G |
|||
|
1/4 |
RF-254-4MP |
1/4-18 |
1.60 |
0.83 |
0.56 |
0.65 |
|
1/4 |
RF-254-6MP |
3/8-18 |
1.67 |
0.90 |
0.69 |
0.75 |
|
3/8 |
RF-374-6MP |
3/8-18 |
1.70 |
0.95 |
0.69 |
0.75 |
|
3/8 |
RF-374-8MP |
1/2-14 |
1.85 |
1.10 |
0.88 |
1.01 |
* This dimension represents a portion of the nipple that is exposed when the nipple is inserted into a Parker RF Series coupler.
|
Body Size (in.) |
1/4 |
3/8 |
|
Rated Pressure (psi) |
300 |
300 |
|
Temperature Range (std seals) |
-40° to +250°F |
-40° to +250°F |
|
Locking Device |
4 balls |
8 balls |
|
Vacuum Data (inches Hg) |
|
|
Orders & Quotes
 |
 |
 |
WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
