Parker RF Push-Lok Hose Barb Series QC COUPLERS

Sizes 1/4" - 3/8"

Go to Parker RF Series Push-Lok Hose Barb Nipples
Select Another Pneumatic QC



Specifications for Parker RF Series - Push-Lok Hose Barb



Body

Size

(in.)

NEW

Part
No.

Hose

I.D.

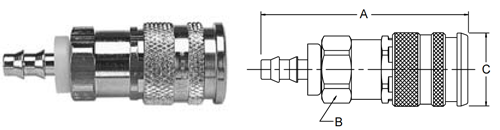

Dimensions (in.)

Overall

Length

Wrench

Flats

Largest

Diameter

1/4

RF-251-4PL

1/4

2.64

0.81

0.99

1/4

RF-251-6PL

3/8

2.78

0.81

0.99

1/4

RF-251-8PL

1/2

2.93

0.81

0.99

3/8

RF-371-6PL

3/8

3.02

0.94

1.07

3/8

RF-371-8PL

1/2

3.02

0.94

1.07





Body Size (in.)

1/4

3/8

Rated Pressure (psi)

300

300

Temperature Range (std seals)

-40° to +250°F

-40° to +250°F

Locking Device

4 balls

8 balls

Vacuum Data (inches Hg)
Disconnected (coupler only)
Connected


Not Recommended
Not Recommended


Not Recommended
Not Recommended
