Parker Twist-Lock Series Female Pipe Thread Couplers COUPLERS

Sizes 1/4 - 1/2"

Go to Parker Twist-Lock Female Pipe Thread Nipples
Select Another Pneumatic QC



Specifications for Parker Twist-Lock Series - Female Pipe Thread



Body

Size

(in.)

NEW

Part No.

Steel

Thread

Size

NPT

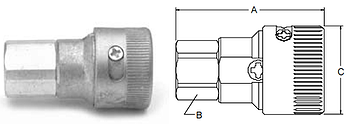

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4

TL-251-4FP

1/4-18

2.01

0.75

1.12

1/2

TL-501-6FP

3/8-18

2.55

1.13

1.50

1/2

TL-501-8FP

1/2-14

2.78

1.13

1.50

1/2

TL-501-12FP

3/4-14

2.91

1.13

1.50





Body Size (in.)

1/4

1/2

Rated Pressure (PSI)

300

300

Temperature Range (Nitrile seal)

-40° F to +250° F.

Locking Device

CAM

Vacuum Service

Not Recommended
