General Purpose-Push to Connect Pneumatic Quick Couplers | Male Pipe Thread |Parker Twist-Lock Series
 |
COUPLERS Sizes 1/4 - 1/2" Go to Parker Twist-Lock Male Pipe Thread Nipples Select Another Pneumatic QC |
Specifications for Parker Twist-Lock Series - Male Pipe Thread
|
Body Size (in.) |
NEW Part No. Steel |
Thread Size NPT |

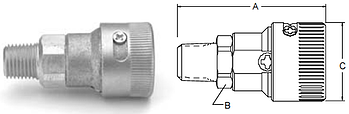

Dimensions (in.) |
||
|
Overall Length A |
Wrench Flats B |
Largest Diameter C |
|||
|
1/4 |
TL-251-4MP |
1/4-18 |
2.23 |
0.75 |
1.12 |
|
1/4 |
TL-251-6MP |
3/8-18 |
2.26 |
0.75 |
1.12 |
|
1/2 |
TL-501-6MP |
3/8-18 |
2.71 |
1.13 |
1.50 |
|
1/2 |
TL-501-8MP |
1/2-14 |
2.88 |
1.13 |
1.50 |
|
Body Size (in.) |
1/4 |
1/2 |
|
Rated Pressure (PSI) |
300 |
300 |
|
Temperature Range (Nitrile seal) |
-40° F to +250° F. |
|
|
Locking Device |
CAM |
|
|
Vacuum Service |
Not Recommended |
|
