General Purpose-Push to Connect Pneumatic Quick Couplers | Male Pipe Thread Nipple |Parker Twist-Lock Series
 |
NIPPLES Sizes 1/4 - 1/2" Go to Parker Twist-Lock Male Pipe Thread Couplers Select Another Pneumatic QC |
Specifications for Parker Twist-Lock Series - Male Pipe Thread Nipples
|
Body Size (in.) |
NEW Part No. Steel |
Thread Size NPT |

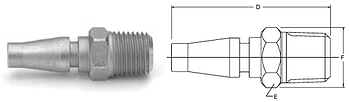

Dimensions (in.) |
||
|
Overall Length D |
Wrench Flats E |
Largest Diameter F |
|||
|
1/4 |
TL-254-2MP |
1/8-27 |
1.68 |
0.50 |
0.58 |
|
1/4 |
TL-254-4MP |
1/4-18 |
1.72 |
0.56 |
0.65 |
|
1/2 |
TL-504-4MP |
1/4-18 |
1.90 |
0.69 |
0.80 |
|
1/2 |
TL-504-6MP |
3/8-18 |
1.90 |
0.69 |
0.80 |
|
1/2 |
TL-504-8MP |
1/2-14 |
2.06 |
0.88 |
1.01 |
|
1/2 |
TL-504-12MP |
3/4-14 |
2.12 |
1.06 |
1.22 |
|
Body Size (in.) |
1/4 |
1/2 |
|
Rated Pressure (PSI) |
300 |
300 |
|
Temperature Range (Nitrile seal) |
-40° F to +250° F. |
|
|
Locking Device |
CAM |
|
|
Vacuum Service |
Not Recommended |
|
