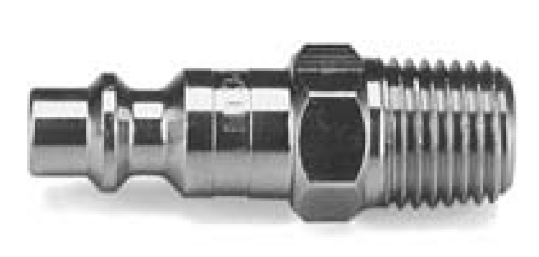

Parker Industrial Interchange Nipples UNIVERSAL INTERCHANGE NIPPLES - Male Pipe Thread

Sizes 1/4" - 3/4"
Works with Coupler Series: Select Another Pneumatic QC



Specifications for Parker Industrial Interchange Nipples - Male Pipe Thread



Body

Size

(in.)

Part

No.

Brass

Part

No.

Steel

Part No.

Type 303

Stainless

Thread

Size

NPTF

Dimensions (in.)

Overall

Length

Exposed*

Length

Largest

Diameter

Wrench Flats

1/4

H0C



1/8-27

1.68

0.92

0.58

0.50

1/4

BH2C

H2C

SH2C

1/4-18

1.66

0.89

0.65

0.56

1/4

H2C-E

SH2C-E

3/8-18

1.90

1.14

0.80

0.69

3/8

H00E



1/8-27

1.68

0.73

0.72

0.62

3/8

H0E



1/4-18

1.90

0.95

0.72

0.62

3/8

BH2E

H2E



3/8-18

1.90

0.95

0.80

0.69

3/8

H2E-F



1/2-14

2.03

1.09

1.02

0.88

1/2

H0F



3/8-18

2.20

0.96

0.79

0.69

1/2

BH2F

H2F



1/2-14

2.35

1.09

1.01

0.88

1/2

H2F-G



3/4-14

2.40

1.16

1.22

1.06

3/4

H2G-F



1/2-14

2.32

1.16

1.16

1.00

3/4

BH2G

H2G



3/4-14

2.28

1.12

1.22

1.06

3/4

H2G-J



1-11 1/2

2.56

1.40

1.52

1.31

* This dimension represents the portion of the nipple that is exposed when the nipple is inserted into a Parker 20 Series coupler.


For more information, please see Parker Catalog 3800.
