Special Purpose Standard-Non Marring Pneumatic Quick Couplers | Male Pipe Thread | Parker Tool Mate RF Interchange Series

Parker Tool Mate Series RF Interchange Male Pipe Thread Coupler COUPLER

Sizes 1/4"


Select Another Pneumatic QC



Specifications for Parker Tool Mate RF Interchange Series



Body

Size

(in.)

Part

No.

Thread

Size

NPTF

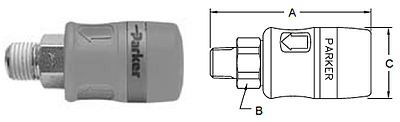

Dimensions (in.)

Overall

Length

A

Hex

Size

B

Largest

Diameter

C

1/4"

PER-251-4MP

1/4-18

2.36

0.83

1.25

1/4"

PER-251-6MP

3/8-18

2.40

0.83

1.25





Body Size1/4”3/8”Rated Pressure300300Temperature Range (°F)0 to 1600 to 160Vacuum ServiceNot Recommended  For more information, please see Parker Catalog 3800. Orders & Quotes
