Special Purpose Exhaust-Non Marring Pneumatic Quick Couplers | Female Pipe Thread | Parker Tool Mate Exhaust RF Interchange Series

Parker Tool Mate Series Exhaust RF Interchange Female Pipe Thread Coupler COUPLER

Sizes 1/4 - 1/2"


Select Another Pneumatic QC



Specifications for Parker Tool Mate Exhaust RF Interchange Series



Body

Size

(in.)

Part

No.

Thread

Size

NPTF

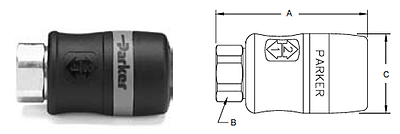

Dimensions (in.)

Overall

Length

A

Wrench

Flats

B

Largest

Diameter

C

1/4"

PES-251-6FP

3/8-18

2.83

0.83

0.83



Body Size

1/4”

3/8”

1/2”

Rated Pressure

300

300

300

Temperature Range (°F)

0 to 160

0 to 160

 0 to 160

Vacuum Service

Not Recommended
